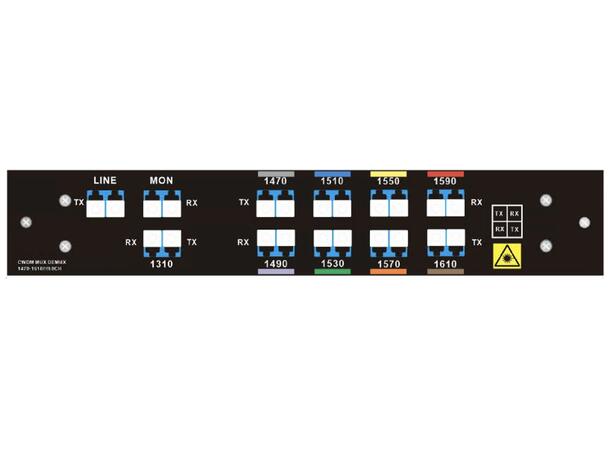

8+1 Channel CWDM MUX/DEMUX, C47–C61 + 1310 nm, Low-Loss Monitor Port, Dual Fiber, LGX
The GLOBALfiber G-CMUX-09-4761-LL-MLU is a fully passive 8-channel CWDM MUX/DEMUX designed for dual-fiber point-to-point transmission.
It combines 8 CWDM wavelengths with a 1310 nm wideband service port and a low-loss monitor (MON) port, enabling efficient aggregation, legacy traffic coexistence, and simplified network monitoring.
This compact LGX module is ideal for fiber-constrained environments and is widely deployed in telecom, data centers, broadcast & TV, cloud infrastructure, finance, and government networks.
Key Features
• 8-channel CWDM MUX/DEMUX with 1310 nm service port
• Low-loss MON port for optical power and link monitoring
• Dual-fiber transmission (separate Tx/Rx fibers)
• Fully passive design – no power required
• Supports mixed services and legacy traffic
• Compact LGX plug-in module, compatible with 1U racks
• Low insertion loss and high channel isolation
• LC connectors
CWDM & Service Wavelengths
CWDM Channels (8):
• 1470 nm
• 1490 nm
• 1510 nm
• 1530 nm
• 1550 nm
• 1570 nm
• 1590 nm
• 1610 nm
• Channel spacing: 20 nm
• Channel passband: ±6.5 nm
Service Ports:
• 1310 nm port: 1260–1360 nm (legacy and access services)
• MON port: Low-loss monitoring, non-intrusive to live traffic
Optical Technology
• Filter technology: TFF (Thin Film Filter)
Technical Specifications
• Insertion loss (CWDM): = 1.8 dB
• Link loss: = 2.5 dB
• Insertion loss @ 1% MON port: = 26 dB
• Insertion loss @ 1310 nm port: = 0.8 dB
• Center wavelength accuracy: ±0.05 nm
• Return loss: = 45 dB
• Directivity: = 45 dB
• Polarization mode dispersion (PMD): = 0.1 ps
• Polarization dependent loss (PDL): = 0.3 dB
Channel Isolation
• Adjacent channels: = 30 dB
• Non-adjacent channels: = 45 dB
Environmental & Mechanical Specifications
• Operating temperature: –40 °C to +85 °C
• Storage temperature: –40 °C to +85 °C
• Module format: LGX
• Dimensions (H × W × D): 190 × 200 × 39 mm
• Net weight: 0.5 kg
• Connectors: LC
Typical Applications
• CWDM aggregation with legacy traffic coexistence
• Fiber-scarce metro and access networks
• Optical power and link monitoring without service disruption
• Data center edge connectivity
• Broadcast, cloud, finance, and public infrastructure
