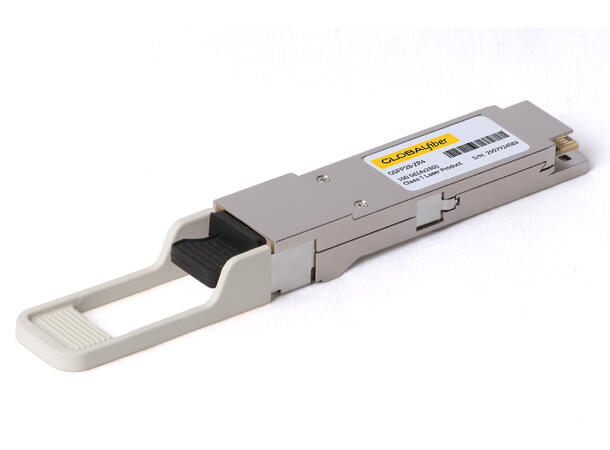

100GBASE-ZR4 QSFP28 Optical Transceiver Module, SMF, 1310nm, 80km, LC, DOM
The QSFP-100G-ZR4 compatible QSFP28 optical transceiver module is designed for use in 100GBASE Ethernet, providing throughput up to 80 km over single-mode fiber (SMF) using a wavelength of 1310 nm via duplex LC connectors. The 100 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. Featuring a BOX+FPC+PCBA separate design, it offers great reliability, airtightness, and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy-to-install, hot-swappable transceiver is suitable for various applications, such as 100G Ethernet, telecom, and data centers.
Key Features
QSFP28 MSA compliant
Hot pluggable 38 pin electrical interface
4 LAN-WDM lanes MUX/DEMUX design
4x25G electrical interface
Maximum power consumption 6.5W
LC duplex connector
Supports 103.125Gb/s aggregate bit rate
Up to 80km transmission on single mode fiber
Operating case temperature: 0°C to 70°C
Single 3.3V power supply
RoHS 2.0 compliant
TX Power: 2~6.5dBm
Minimum Receiver Power: -28dBm
Powerbudget: 30dB
Application
100GBASE-ZR4 100G Ethernet
Telecom networking
