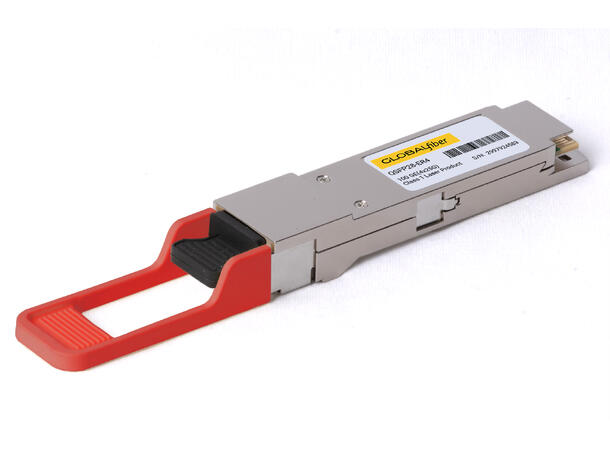

QSFP28 Optical Transceiver Module, SMF, 1310nm, 40km, LC, DOM
The QSFP-100G-ER4 compatible QSFP28 optical transceiver module is engineered for 100GBASE Ethernet transmission over distances up to 40?km via single-mode fiber (SMF). Operating at a wavelength of 1310?nm and using duplex LC connectors, the module carries 100 Gigabit Ethernet over four separate wavelengths, with internal multiplexing and demultiplexing.
This transceiver features a BOX + FPC + PCBA separated construction, delivering high reliability, excellent thermal performance, and airtight sealing. It complies fully with the IEEE 802.3ba standard and supports Digital Optical Monitoring (DOM) via the I2C interface, as specified in the QSFP28 MSA. This allows real-time monitoring of parameters such as temperature, voltage, and optical power.
Key Features
Compliant to Ethernet 100GBASE-ER4
Supports 103.1Gb/s aggregate bit rate
Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
Receiver: 4x25Gb/s APD ROSA
Up to 40km reach for G.652 SMF
Duplex LC optical receptacle
4x25G electrical interface (OIF CEI-28G-VSR)
RoHS-6 compliant and lead-free
Single +3.3V power supply
Maximum power consumption 4.5W
Case Operating Temperature: Commercial 0 ~ +70C
TX Power: -2.9~+4.5dBm
Receiver Sensitivity:< -20.9dBm
Powerbudget: 18dB
Application
100GBASE-ER4 Ethernet Links
Infiniband QDR and DDR interconnects
Client-side 100G Telecom connections
