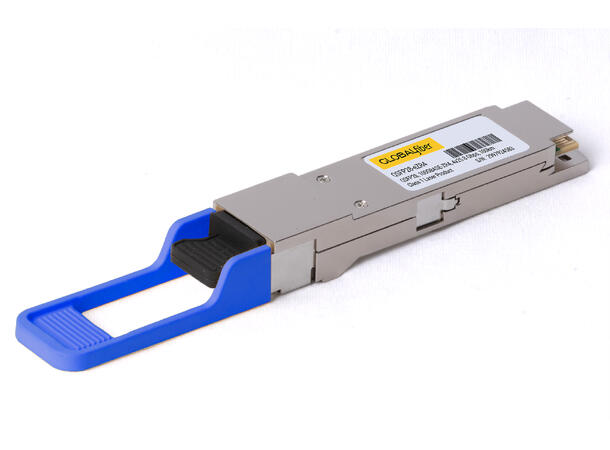

100GBASE-ZR4 QSFP28 Optical Transceiver Module – 100km, SMF, 1310nm, LC, DOM
The 100GBASE-ZR4 QSFP28 optical transceiver is designed for high-speed 100 Gigabit Ethernet transmission over long distances up to 100 kilometers using single-mode fiber (SMF). It operates at a 1310nm wavelength and connects via duplex LC connectors.
This module utilizes four independent wavelengths for data transmission, with internal multiplexing and demultiplexing handled by the transceiver. It complies with IEEE 802.3, SFF-8636, and RoHS 10 standards, ensuring reliable and eco-compliant deployment across enterprise and carrier-grade networks.
Equipped with Digital Optical Monitoring (DOM) via the I²C interface, the module enables real-time monitoring of critical operating parameters such as temperature, voltage, laser bias, and optical power, as defined by the QSFP28 MSA.
Key Features
Supports 100GBASE 100GE;
Lane bit rate 25.78 Gb/s 100GE
Up to 100km transmission on SMF;
LAN WDM laser and PIN receiver with SOA;
Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS;
High speed I/O electrical interface (CAUI-4);
I2C interface with integrated Digital Diagnostic monitoring;
QSFP28 MSA package with duplex LC connector;
Single +3.3V power supply;
Typical power consumption 6.5 W;
Operating case temperature: 0 to +70 °C;
Compliant to IEEE 802.3bm and ITU-T G.959;
Compliant to SFF-8636 and SFF-8679;
Complies with EU Directive 2015/863/EU
TX Power: +4.0~+8.0dBm
Receiver Sensitivity: < -30dBm
Application
100GBASE-ZR4 Plus
