Q100G-BX40-32 – 100G BiDi Transceiver, 40km
Product Overview

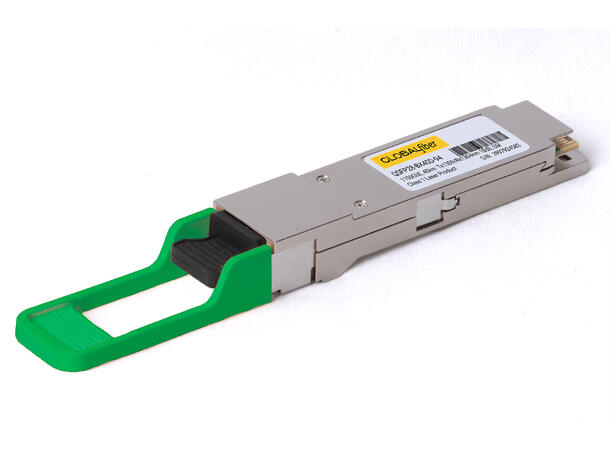

The GLOBALfiber 100GBASE-BX40 BiDi QSFP28 optical transceiver designed for long-distance 100 Gigabit Ethernet connectivity over a single strand of Single Mode Fiber (SMF).
Operating at 1309.14nm TX and 1304.58nm RX, this transceiver delivers reliable 100G transmission up to 40km while maximizing fiber utilization and reducing infrastructure costs. The module utilizes advanced 100G PAM4 optical modulation, KP4 Forward Error Correction (FEC) and an APD receiver to ensure exceptional optical performance for carrier, enterprise and data center environments.
This hot-pluggable QSFP28 transceiver is fully compliant with QSFP28 MSA and 100G Lambda MSA specifications and supports real-time Digital Diagnostics Monitoring (DDM).
Features
• Supports 100GBASE-BX40 Ethernet transmission
• Supports 100 Gigabit Ethernet applications
• Up to 106.25Gbps aggregate data rate
• Single-fiber BiDi technology
• Up to 40km transmission over OS2 Single Mode Fiber
• TX wavelength 1309.14nm
• RX wavelength 1304.58nm
• PAM4 optical modulation
• KP4 Forward Error Correction (FEC)
• MZM EML laser transmitter
• APD receiver technology
• 4 × 25G NRZ electrical interface
• Simplex LC/UPC optical connector
• Integrated Digital Diagnostics Monitoring (DDM/DOM)
• Hot-pluggable QSFP28 form factor
• Low power consumption
• Supports telecom, ISP and data center applications
• Fully compliant with 100G Lambda MSA
Technical Specifications
General
• Form Factor: QSFP28
• Data Rate: 106.25Gbps
• Ethernet Standard: 100GBASE-BX40
• Fiber Type: OS2 Single Mode Fiber (SMF)
• Connector Type: Simplex LC/UPC
• Maximum Reach: 40km
• Optical Modulation: 1 × 100G PAM4
• Electrical Modulation: 4 × 25G NRZ
• Built-in FEC: KP4
• Maximum Power Consumption: 4.5W
• DDM/DOM: Supported
• Operating Temperature: 0°C to +70°C
• Bit Error Ratio (BER): 2E-4
• Warranty: 5 Years
Optical Characteristics
Transmitter
• TX Wavelength: 1309.14nm
• Transmitter Type: MZM EML
• Optical Output Power: +1.7dBm to +7.1dBm
• Extinction Ratio: > 5.0dB
Receiver
• RX Wavelength: 1304.58nm
• Receiver Type: APD
• Receiver Sensitivity: = -16dBm
• Receiver Overload: -3dBm
• Optical Power Budget: 17.7dB
Compliance
• QSFP28 MSA
• IEEE 802.3bs
• 100G Lambda MSA
• Digital Diagnostics Monitoring (DDM)
Recommended Attenuators
For short-distance installations, optical attenuators are recommended:
• Distance = 10km ? 12dB attenuator
• Distance = 20km ? 5dB attenuator
• Distance = 30km ? 2dB attenuator
Applications
• 100G Ethernet Networks
• Data Center Interconnect (DCI)
• Cloud Infrastructure
• Telecom Networks
• ISP and Broadband Networks
• Enterprise Backbone Networks
• Metro Ethernet Networks
• Storage Area Networks (SAN)
• Long-Reach Optical Links
• Fiber Infrastructure Optimization
