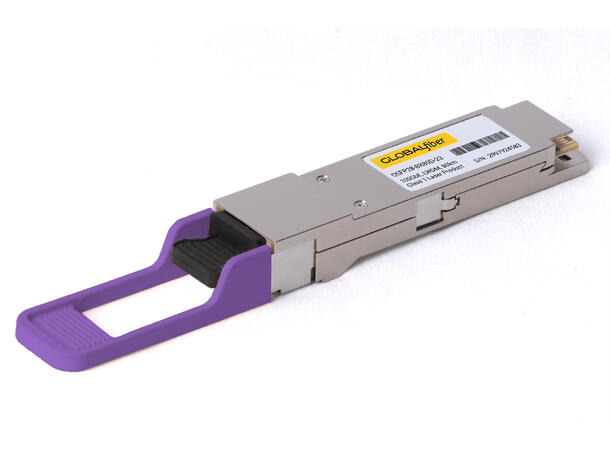

100GBASE-BX80 QSFP28 Bi-Directional Optical Transceiver
(Single-Mode Fiber, LAN-WDM BiDi, 80 km, LC, DOM)
The 100GBASE-BX80 QSFP28 Bi-Directional optical transceiver is designed to deliver 100 Gb/s Ethernet throughput over single-mode fiber (SMF) with a transmission reach of up to 80 km using LAN-WDM wavelengths.
The module operates in a bi-directional configuration over a single fiber, transmitting and receiving on complementary wavelength sets. It uses four LAN-WDM wavelengths per direction, enabling efficient fiber utilization while maintaining long-reach performance.
This transceiver must be deployed in pairs with a corresponding module using complementary transmit and receive wavelengths. It supports hot-swappable operation and provides Digital Optical Monitoring (DOM/DDM) via an I²C interface in accordance with the QSFP28 MSA, allowing real-time access to operational parameters.
The 100G BX80 BiDi transceiver is suitable for 100G Ethernet, data center interconnect (DCI), and storage area network (SAN) applications requiring long-distance, single-fiber connectivity.
Wavelength Configuration (Bi-Directional)
• TX Wavelengths:
1273.54 nm, 1277.89 nm, 1282.26 nm, 1286.66 nm
• RX Wavelengths:
1295.56 nm, 1300.05 nm, 1304.58 nm, 1309.14 nm
(Paired module uses the inverse wavelength direction.)
Technical Specifications
• Part Number: QSP-100B423-80CL
• Form Factor: QSFP28
• Data Rate: 100 Gb/s
• Maximum Transmission Distance: 80 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: Simplex LC
• Operating Voltage: 3.3 V
Optical Characteristics
• Transmitter Type: EML
• Receiver Type: SOA + PIN
• Transmit Output Power: +1.0 to +7.0 dBm
• Receiver Sensitivity: < -24 dBm
Monitoring & Reliability
• Digital Diagnostics (DOM/DDM): Supported (I²C interface)
• Hot-Swappable: Yes
Environmental
• Operating Temperature Range: 0 °C to +70 °C
Standards & Compliance
• Standards: QSFP28 MSA
• Ethernet Compatibility: 100G Bi-Directional LAN-WDM
Typical Applications
• 100G Ethernet links
• Data center interconnect (DCI)
• Metro and access networks
• Storage area networks (SANs)
• Single-fiber long-reach deployments
