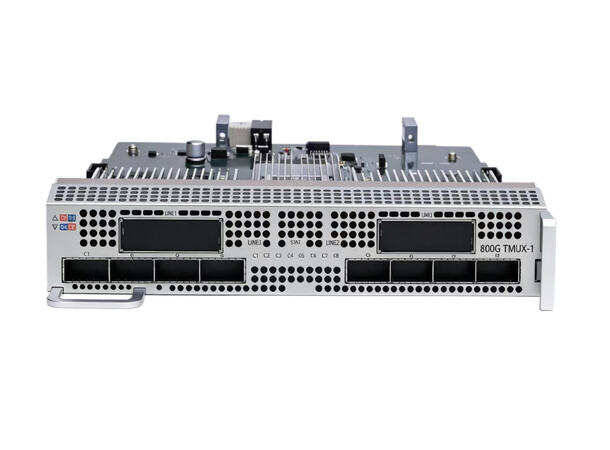

800G Muxponder, 8600-series
The 800G Muxponder is a high-capacity optical transport card designed for flexible aggregation of 100GbE and 200GbE client services onto coherent 400G and 800G DWDM line interfaces.The client side supports up to eight QSFP28 or QSFP56 interfaces, while the line side is equipped with two CFP2 slots for coherent DCO modules. The card supports either 1×800G with 1+1 protection or 2×800G line-side transmission, depending on the installed DCO modules and system configuration.
The muxponder also provides comprehensive Ethernet performance monitoring, LLDP support, delay measurement, and Forward Error Correction.
Key Features
• High-capacity 800G muxponder / transponder card
• Supports up to 8 client-side service interfaces
• Supports 100GbE and 200GbE client services
• Supports 100GE FlexE service access
• Client-side interfaces: 8× QSFP28 for 100GbE, 8× QSFP56 for 200GbE
• Line-side interfaces: 2× CFP2 DCO slots, Supports 400G and 800G coherent DWDM DCO modules
• Supports: 1×800G DCO with 1+1 line protection, 2×800G DCO
• Tunable DWDM line-side wavelength
• Supports 75GHz, 100GHz and 150GHz channel spacing
• Integrated Ethernet RMON performance monitoring
• Supports LLDP
• Supports latency / delay measurement
• Forward Error Correction supported
• Occupies two chassis slots
• Maximum power consumption: =150W
Client-Side Services
• 8×100GbE
• 8×200GbE
• 100GE
• 100GE FlexE
• 200GE
• Other supported Ethernet service access types depending on configuration
• FEC supported
Client-Side Interfaces
• 8× QSFP28, 100Gbps
• Or 8× QSFP56, 200Gbps
Line-Side Interfaces
• 2× CFP2 DCO slots
• Supports coherent DWDM CFP2 DCO modules
• Supports 400Gbps and 800Gbps line-side transmission
• Supports 1×800G with 1+1 protection
• Supports 2×800G operation
DWDM Wavelength Range
• Center frequency range: 190.7THz to 196.65THz
• Tunable wavelength operation
• Supported channel spacing:, 75GHz, 100GHz, 150GHz
Line-Side Optical Performance
• Transmit optical power is adjustable within the supported range of the installed CFP2 DCO module
• Actual transmit power depends on the selected DCO module
Modulation and OSNR Performance
• 400G PM-QPSK: OSNR tolerance: 17dB
• 400G 16QAM-PS: OSNR tolerance: 18.5dB
• 800G PM-16QAM-PS: OSNR tolerance: 25.5dB
Ethernet Monitoring Functions
Integrated Ethernet RMON monitoring includes:
• Packet count
• Transmission count
• Byte count
• Port utilization
• CRC monitoring
• Error packet monitoring
• Ethernet traffic statistics
Management and Monitoring
• LLDP support
• Delay measurement
• Ethernet RMON monitoring
• Port utilization monitoring
• Error and CRC statistics
• FEC monitoring and support
Mechanical Specifications
• Dimensions: 216mm (W) × 254mm (D) × 42mm (H)
• Chassis occupation: 2 slots
Environmental Specifications
• Operating temperature: -5°C to +45°C
• Storage temperature: -40°C to +80°C
• Relative humidity: 5% to 95%
• Non-condensing operation
Power
• Maximum power consumption: =150W
