GF-6800-CH08 – 2U HT6800 DCI DWDM Chassis with Redundant MPU Main Control
The GF-6800-CH08 is a high-capacity 2U modular chassis for the GF-6800 DCI DWDM Optical Transmission System. Designed for Data Center Interconnect (DCI), metro, backbone and long-haul optical networks, the platform combines high transmission capacity, modular service expansion and centralized network management in a compact 2U form factor.

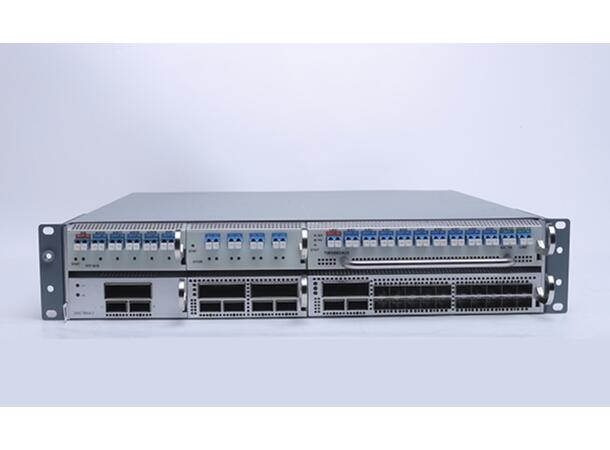

The chassis supports up to 8 × 1/4-slot service modules or 4 × 1/2-slot modules and provides a maximum platform capacity of up to 6.4 Tbps. The modular architecture supports electrical-layer muxponder/transponder cards as well as optical-layer modules including WSS, TFF, OP, OTDR, OCM, OA and OLA cards.
Technical Specifications
• Product type: Modular DCI DWDM Optical Transmission Chassis
• Model: GF-6800-CH08
• Platform: HT6800 DCI DWDM Optical Transmission System
• Chassis format: 2U
• Maximum platform capacity: 6.4 Tbps

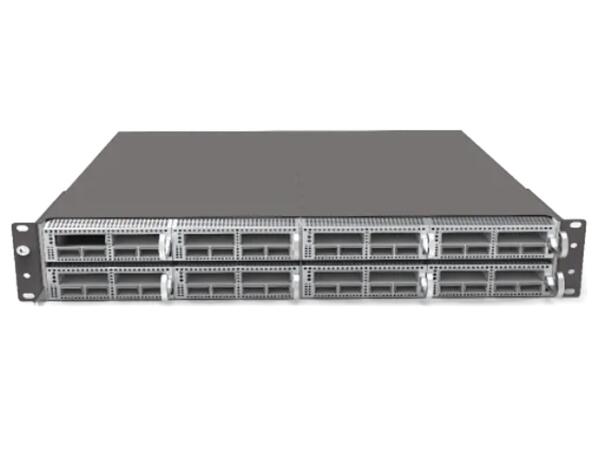

• Service slots: Up to 8 × 1/4-slot modules, Up to 4 × 1/2-slot modules
• Chassis dimensions: 442 × 484 × 88 mm (W × D × H)

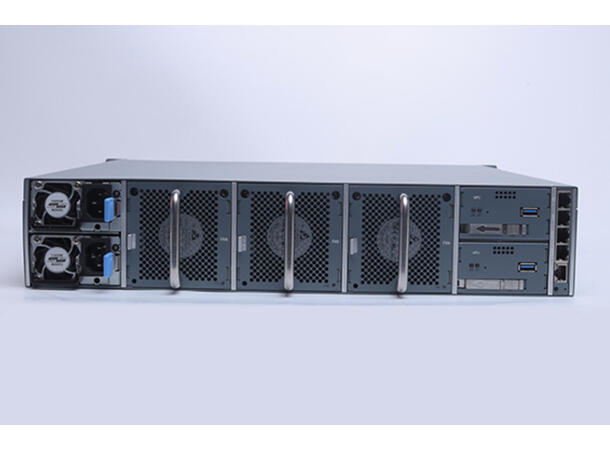

• Modular and hot-swappable architecture
• Front-to-rear airflow cooling
• Hot-swappable service cards
• Hot-swappable fan modules
• Hot-swappable main control cards
• Hot-swappable power modules
• Dual controller architecture with 1+1 redundancy
• Dual power supply with 1+1 redundancy
• Power options: 220 V AC, High-voltage DC, -48 V DC
• Maximum chassis power consumption: <800 W*
• Operating temperature: -5°C to +45°C
• Storage temperature: -40°C to +80°C
• Relative humidity: 5% to 95%, non-condensing
Supported Service & Optical Modules
The GF-6800-CH08 provides a flexible modular platform supporting both electrical-layer and optical-layer cards.
• Client-side services:
o 10GE
o 100GE
o 100G FlexE
o 100G OTU4
o 200GE
o 400GE
• Line-side transmission:
o 100G
o 200G
o 300G
o 400G
o 800G
• Supported electrical-layer cards include:
o 100G TMUX
o 200G TMUX
o 200G TMUX-2
o 400G TMUX
o 400G QDD
o 400G OEO
o 800G TMUX
• Supported optical-layer cards include:
o WSS
o TFF
o OP
o OTDR
o OCM
o OA EDFA
o OLA EDFA

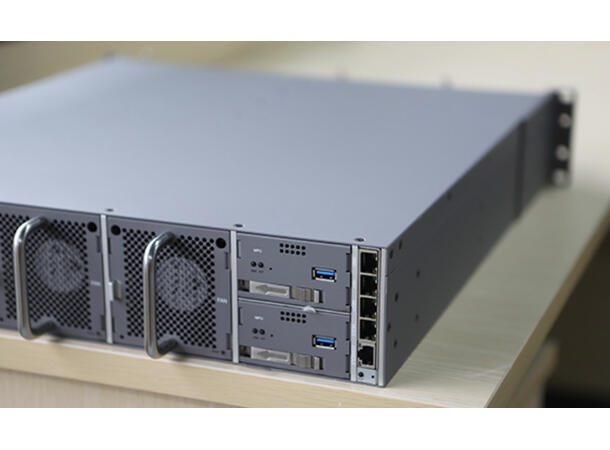

Network Management Unit – MPU Main Control Card
The MPU (Main Processing Unit) is the central control and network management unit of the GF-6800-CH08. It manages both the control plane and management plane and communicates with the installed service cards through the chassis backplane.
For the 2U platform, the system supports dual MPU controllers with 1+1 redundancy, providing increased availability and protection against controller failure.
MPU Technical Specifications & Features
• Function: Main Processing Unit / Main Control Card
• Dual-controller architecture
• 1+1 redundant main control
• Primary/standby failover
• CPU clock speed: 1500 MHz
• Memory: 2 GB
• Hot-swappable design
• Independent cooling
• Service configuration management
• Cross-connect control
• Control policy management
• Network configuration
• Real-time board monitoring
• Real-time port monitoring
• Real-time service-status monitoring
• Automatic board identification
• Board online/offline detection
• Board power-on/off control
• Board reset control
• Alarm generation and reporting
• Alarm classification and filtering
• Operation and fault logging
• Log storage, querying and export
• Software and firmware upgrade management
• Configuration version management
• User management
• Clock and version synchronization
• Data backup and recovery
• Environmental monitoring
• MPU power consumption: =10 W
Network Management Interfaces
• 2 × RJ45 Gigabit Ethernet management ports
• 1 × RJ45 Console port
• 2 × OSC Gigabit/100 Mbps ports
• 2 × USB Type-A ports
• 2 × MUX ports
• NETCONF
• SNMP
• Web-based management
• CLI
• SSH
• Telnet
• YANG model support
• Open API support
• Layer 2 RSTP ring topology
• Layer 3 OSPF networking
• BGP support
Typical Applications
• High-capacity Data Center Interconnect (DCI)
• 100G/200G/300G/400G/800G DWDM networks
• Metro DWDM transport
• Long-haul optical transmission
• National and regional backbone networks
• Multi-service optical transport
• Coherent DWDM systems
• Networks requiring redundant centralized management
• Managed EDFA/WSS/DWDM optical systems
