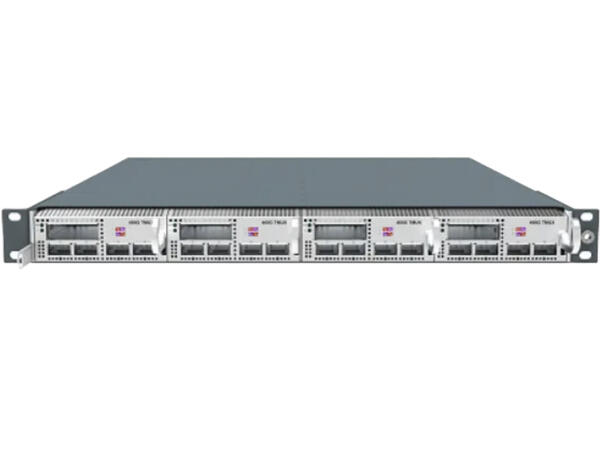

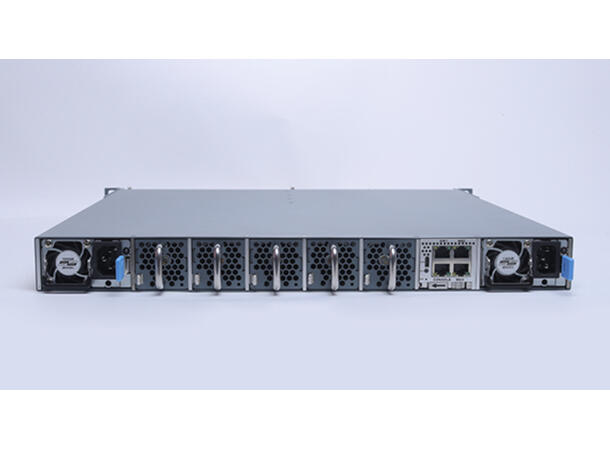

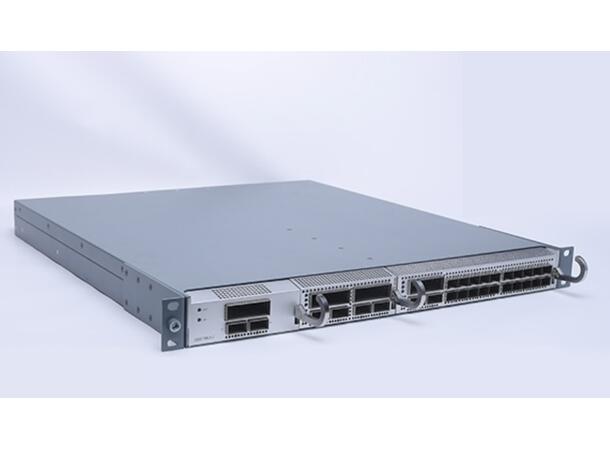

GF-6800-CH04 – HT6800 DCI DWDM Chassis with MPU Main Control Card
The GF-6800-CH04 is a compact and modular chassis for the GF-6800 DCI DWDM Optical Transmission System, designed for high-capacity Data Center Interconnect (DCI), metro and optical transport applications.
The platform provides a flexible architecture for integrating electrical-layer service cards, coherent transponders/muxponders and optical-layer modules within a centrally managed system. The GF-6800 platform supports high-capacity transmission, modular expansion and multiple network management interfaces, making it suitable for scalable DWDM deployments.
Technical Specifications
• Product type: DCI DWDM Optical Transmission Chassis
• Model: GF-6800-CH04
• Platform: GF-6800 DCI DWDM Optical Transmission System
• Modular chassis architecture
• Supports electrical-layer and optical-layer modules
• Supports hot-swappable service, fan, main control and power modules
• Front-to-rear airflow cooling design
• Supports centralized network management
• Supports SDN-based network architecture
• Supports YANG model interfaces based on NETCONF
• Management methods: Web, CLI, SNMP, SSH, Telnet, NETCONF
• Supports dual-channel Gigabit Ethernet management
• Supports OSC management
• Supports OSPF networking
• Supports Layer 2 RSTP ring topology
• Supports Layer 3 OSPF and BGP
• Supports AC, high-voltage DC and -48 V DC power options
• Designed for DCI, metro and backbone DWDM networks
GF-6800 supports flexible client-side services including 10GE, 100GE, 100G FlexE, 100G OTU4, 200GE and 400GE, while the line side supports transmission rates from 100G through 800G.
Network Management Unit – MPU Main Control Card
The MPU (Main Processing Unit) is the central control and network management card for the GF-6800 chassis. It manages both the control plane and management plane and communicates with installed service cards through the chassis backplane.
The MPU provides centralized service configuration, equipment monitoring, alarm management, software and firmware management, network configuration and system administration. It features a high-performance CPU, hot-swappable design and independent cooling.
MPU Technical Specifications & Features
• Function: Main Processing Unit / Main Control Card
• Central control and network management of the GF-6800 platform
• Manages control plane and management plane
• CPU clock speed: 1500 MHz
• Memory: 2 GB
• Hot-swappable design
• Independent cooling system
• Communication with service cards through the backplane bus
• Supports service configuration management
• Supports cross-connect control
• Supports control policy configuration
• Supports network configuration
• Supports synchronization and version synchronization
• Real-time monitoring of: Boards, Ports, Services
• Automatic board-type identification
• Board presence/offline detection
• Board power-on/off control
• Board reset control
• Alarm generation and reporting
• Alarm classification and filtering
• Device operation logging
• Fault logging
• Log storage, querying and export
• Software and firmware upgrade management
• Configuration version management
• User management
• Environmental monitoring
• Data backup and recovery
• Primary/standby failover support
• 1+1 redundant MPU support in 2U configuration
• Management protocols/interfaces: CLI, Telnet, SNMP, Web, SSH, NETCONF
• Maximum power consumption: =10 W
• Operating temperature: -5°C to +45°C
• Storage temperature: -40°C to +80°C
• Relative humidity: 5% to 95%, non-condensing
Typical Applications
• Data Center Interconnect (DCI)
• Metro DWDM networks
• Long-haul DWDM transmission
• National and regional backbone networks
• High-capacity point-to-point optical networks
• Managed coherent 100G/200G/400G/800G DWDM systems
• Networks requiring centralized monitoring and remote management
