HT6800-200GTMUX – 200G Muxponder

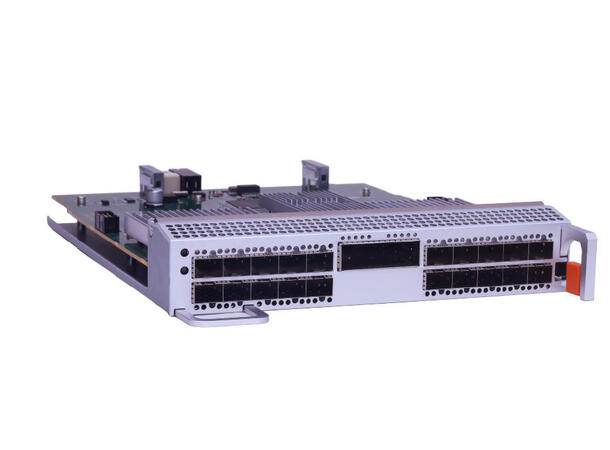

The HT6800-200GTMUX is a high-capacity coherent DWDM muxponder designed to aggregate up to 20 × 10G client services into a single 200G coherent DWDM line interface.The client side provides 20 × SFP+ ports for 10G service access, while the line side uses 1 × CFP2-DCO coherent DWDM module for 200G transmission. The card occupies 2 slots in the HT6800 platform.
Features
• Supports aggregation of up to 20 × 10G client services
• Supports 1 × 200G coherent DWDM line-side service
• Client side provides 20 × SFP+ ports
• Line side provides 1 × CFP2-DCO coherent interface
• Supports 10G Ethernet and other compatible 10G service access
• Supports tunable coherent DWDM operation
• Supports frequency range from 190.7 THz to 196.65 THz
• Supports: 50/75/100/150 GHz channel spacing
• Supports adjustable optical transmit power depending on the installed CFP2-DCO module
• Supports coherent modulation formats including: DP-QPSK, 8QAM
• Supports OFEC
• Supports high-capacity service aggregation over C-band DWDM networks
• Suitable for metro, regional, long-haul and DCI applications
• Occupies 2 slots in the HT6800 chassis
Technical Specifications
• Model: HT6800-200GTMUX
• Product Type: 200G coherent DWDM muxponder
• Maximum Client-Side Capacity: 20 × 10 Gbps
• Maximum Line-Side Capacity: 200 Gbps
• Client-Side Data Rate: 20 × 10 Gbps
• Line-Side Data Rate: 1 × 200 Gbps
• Client-Side Interfaces: 20 × SFP+
• Line-Side Interface: 1 × CFP2-DCO coherent DWDM
• Supported Client Services: 10Gb, other compatible 10G services
• Optical Frequency Range: 190.7–196.65 THz
• Channel Spacing: 50/75/100/150 GHz
• Wavelength / Frequency Tuning: Adjustable within the supported coherent DWDM frequency range
• Optical Transmit Power: Adjustable within the supported range of the installed CFP2-DCO module
• Coherent Modulation Formats: DP-QPSK, 8QAM
• Forward Error Correction: OFEC
• Card Width: 2 slots
• Dimensions: 216 mm (W) × 254 mm (D) × 42 mm (H)
• Maximum Power Consumption: =80 W
• Operating Temperature: -5°C to +45°C
• Storage Temperature: -40°C to +80°C
• Relative Humidity: 5% to 95%, non-condensing
OSNR Performance
• 100G DP-QPSK with OFEC: OSNR tolerance of 12.5 dB
• 200G DP-QPSK with OFEC: OSNR tolerance of 14 dB
• 200G 8QAM with OFEC: OSNR tolerance of 20 dB
Typical Applications
• 20 × 10G to 200G service aggregation
• Data Center Interconnect, DCI
• Metro DWDM networks
• Regional optical transport networks
• Long-haul DWDM transmission
• Point-to-point coherent DWDM links
• ROADM-based optical networks
• Passive DWDM transport systems
• Capacity expansion of existing C-band optical networks
