Product Overview
The GLOBALfiber 18-channel CWDM Mux/Demux provides passive wavelength multiplexing for high-capacity optical transmission over limited fiber infrastructure. It supports up to 18 independent optical channels in the 1270–1610 nm wavelength range, spaced at 20 nm according to the standard CWDM ITU-T G.694.2 grid. This unit allows multiple data services to be transported through a single fiber pair, improving fiber efficiency and lowering network deployment cost.
The module is suitable for Ethernet, SDH/SONET, OTN, Fibre Channel, GPON/XGS-PON overlay, and custom wavelength services. With passive Thin-Film Filter (TFF) technology, it requires no external power and operates reliably across industrial temperature ranges.
Typical Use Cases
• Metro and access network aggregation
• Datacenter interconnect with limited fiber availability
• ISP and broadband access backhaul
• SAN extension and Fibre Channel wavelength transport
• Layer 1 wavelength services and private optical circuits
•
Optical Performance
• Wavelength Channels: 18 channels (1270 nm – 1610 nm, CWDM grid)
• Channel Spacing: 20 nm standard CWDM spacing
• Channel Passband: ±6.5 nm
• Filter Technology: Thin-Film Filter (TFF), passive, no power required
• Insertion Loss (Regular): = 5.4 dB
• Insertion Loss (8 Skip 0 Configuration): = 3.0 dB
• Link Loss (Regular): = 6.2 dB
• Link Loss (8 Skip 0 Configuration): = 4.0 dB
• Monitor Port Insertion Loss (1% Tap): = 26 dB
• Center Wavelength Accuracy: ±0.05 nm
• Return Loss: = 45 dB
• Directivity: = 45 dB
• Polarization Mode Dispersion (PMD): = 0.1 ps
• Polarization Dependent Loss (PDL): = 0.3 dB
• Channel Isolation (Adjacent): = 30 dB
• Channel Isolation (Non-Adjacent): = 45 dB
• Operating Temperature: -40°C to +85°C (industrial rating)
• Storage Temperature: -40°C to +85°C
• Device Type: Passive optical multiplexer/demultiplexer, no power consumption
Mechanical & Mounting

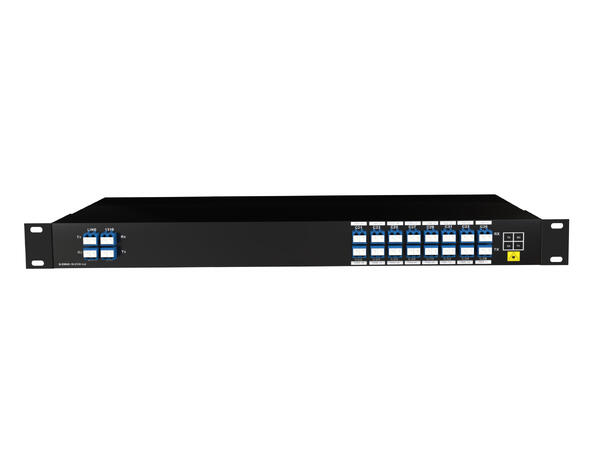

• Standard 19” 1RU rackmount
• Passive device (no power required)
• Rugged steel chassis suitable for telecom racks, PoPs, data halls and outdoor shelters
Monitor Port Description
The integrated 1% monitor port allows optical link performance and power diagnostics without service interruption, supporting proactive maintenance and faster troubleshooting.
Compatibility
• Fully compliant with ITU-T G.694.2 CWDM grid
• Compatible with all major optical transceiver brands (Cisco, Juniper, Arista, Huawei, Nokia, Ciena, Mellanox/NVIDIA)
• Supports 1G, 10G, 25G, 40G, 100G and SAN protocol wavelengths
