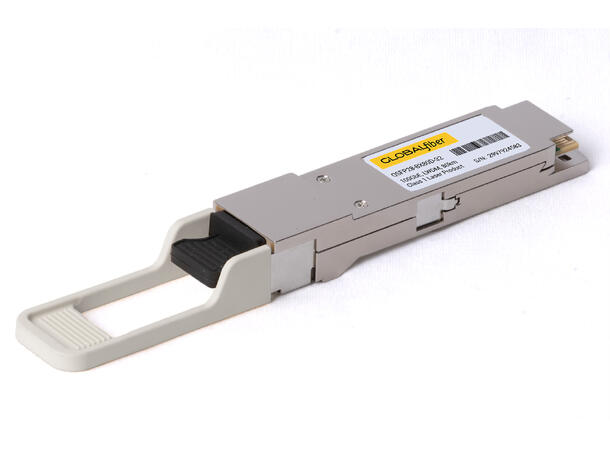

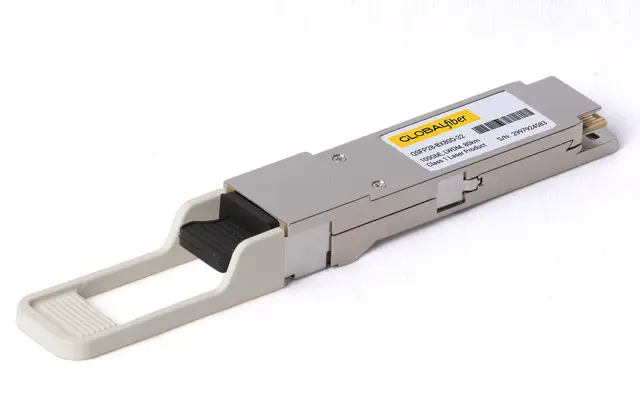

GLOBALfiber Q100G-BX80-32 is a 100G BiDi QSFP28 transceiver for single-fiber Ethernet links up to 80 km. Designed for long-distance data centre, metro and access connections, it combines four LAN-WDM wavelengths per direction with simplex LC connectivity.
Available coding and compatibility
Available coding: Check Point, NVIDIA(ETH), Arista, Ciena, Cisco, Dell, Extreme, Fortinet, Generic, Huawei, Infinera, Intel, Juniper, Nokia Networks. Provide the equipment model, port configuration and software version so support can be checked. Coding options do not confirm compatibility with every model. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification |
Details |
| Product number |
Q100G-BX80-32 |
| Form factor |
QSFP28 |
| Capacity |
100G |
| Applications |
100G Ethernet; data centre interconnects; metro and access networks |
| Reach and fiber |
Up to 80 km over one strand of single-mode fiber |
| TX wavelengths |
1273.54, 1277.89, 1282.26 and 1286.66 nm |
| RX wavelengths |
1295.56, 1300.05, 1304.58 and 1309.14 nm |
| Optical connectors |
Simplex LC |
| Diagnostics |
Digital optical monitoring (DOM/DDM) |
Installation requirements
Use a confirmed complementary module with inverse transmit and receive wavelength sets. Check the complete link budget, received power, host cooling and FEC configuration before deployment.
