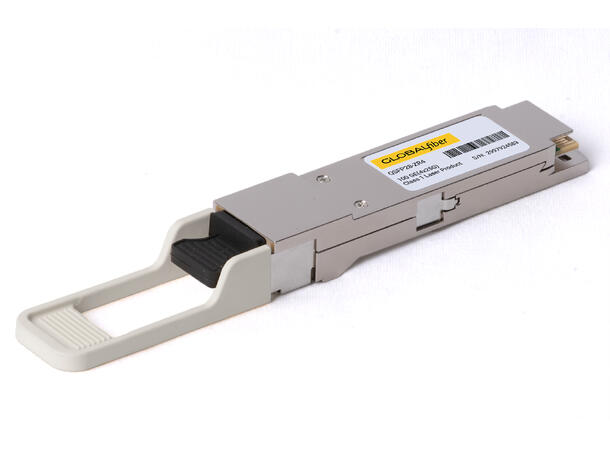

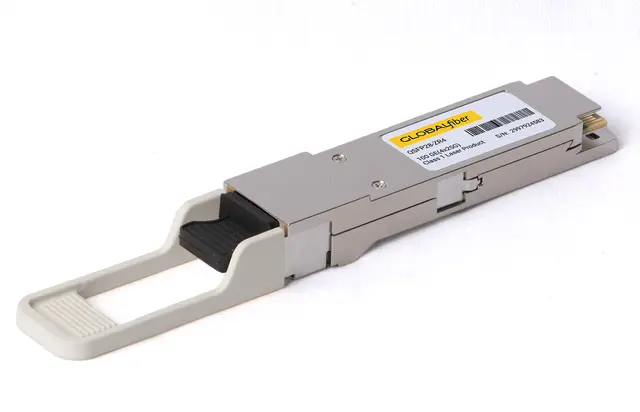

GLOBALfiber Q100G-ZR4 is a 100G QSFP28 ZR4-class transceiver for single-mode Ethernet connections. Four LAN-WDM channels are multiplexed onto a duplex LC interface, while an SOA-assisted receiver and integrated monitoring support optical link operation.
Available coding and compatibility
Available coding: Alcatel, Check Point, NVIDIA(ETH), Arista, Ciena, Cisco, Dell, Extreme, Fortinet, Generic, H3C, HP, Huawei, Infinera, Intel, Juniper, Nokia Networks. Provide the equipment model, port configuration and software version so support can be checked. Coding options do not confirm compatibility with every model or protocol. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification | Details |
|---|
| Product number | Q100G-ZR4 |
|---|
| Form factor | QSFP28 |
|---|
| Capacity | 100G |
|---|
| Applications | 100G Ethernet; ZR4-class optical links |
|---|
| Power dissipation | 6.5 W typical |
|---|
| Fiber | Single-mode fiber |
|---|
| Nominal wavelength | 1295.56, 1300.05, 1304.58 and 1309.14 nm |
|---|
| Optical connectors | Duplex LC |
|---|
| Diagnostics | Digital optical monitoring (DOM/DDM) |
|---|
Installation requirements
Confirm the required route length and complete optical link budget before ordering. Check received power, host cooling and FEC settings for the intended deployment.
