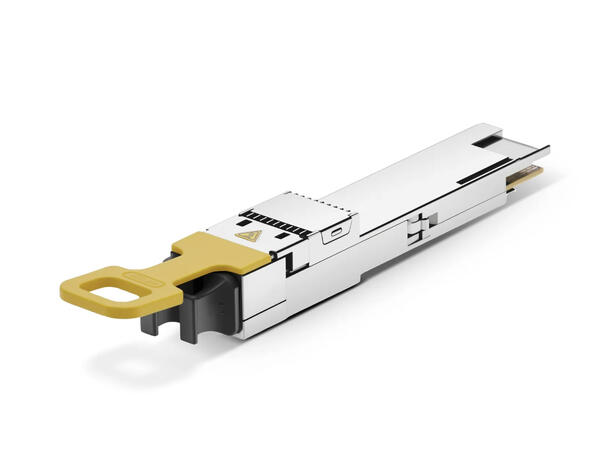

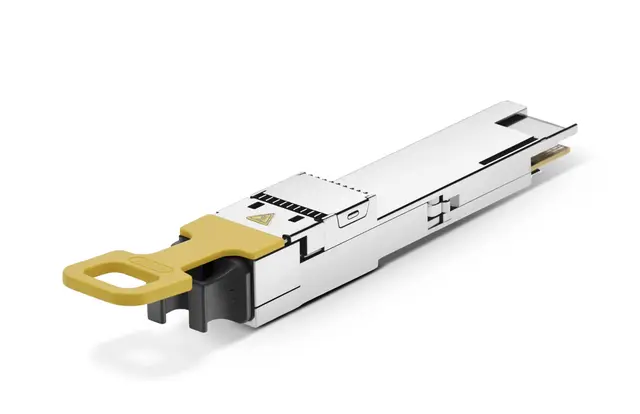

800GBASE 2×DR4 / DR8 QSFP-DD PAM4 Optical Transceiver
(SMF, 1310 nm, 500 m, Dual MPO-12 APC, DOM)
The 800GBASE 2×DR4 / DR8 QSFP-DD optical transceiver module is designed to deliver 800 GbE Ethernet connectivity over distances of up to 500 meters on OS2 single-mode fiber (SMF) at a wavelength of 1310 nm. The module uses dual MTP/MPO-12 APC connectors and supports both 2×400G DR4 and 8×100G DR8 breakout configurations.
Fully compliant with QSFP-DD MSA HW Rev 7.0, CMIS Rev 5.0, and IEEE 802.3cu / 802.3ck standards, the transceiver ensures interoperability across modern 800G network platforms. Integrated Digital Optical Monitoring (DOM/DDM) provides real-time visibility into critical operating parameters.
Optimized for low latency, low power consumption, and high reliability, this transceiver is ideal for 800G Ethernet, data center interconnect, high-performance computing (HPC), enterprise core and distribution networks, and service provider infrastructure.
Technical Specifications
• Part Number: QDD-800G-2DR4
• Form Factor: QSFP-DD
• Maximum Data Rate: 850 Gbps (8 × 106.25 Gbps)
• Modulation (Electrical): 8 × 100G PAM4
• Modulation (Optical): Dual 4 × 100G PAM4 (2×DR4)
• Wavelength: 1310 nm
• Maximum Transmission Distance: 500 m
• Fiber Type: OS2 Single-Mode Fiber (SMF)

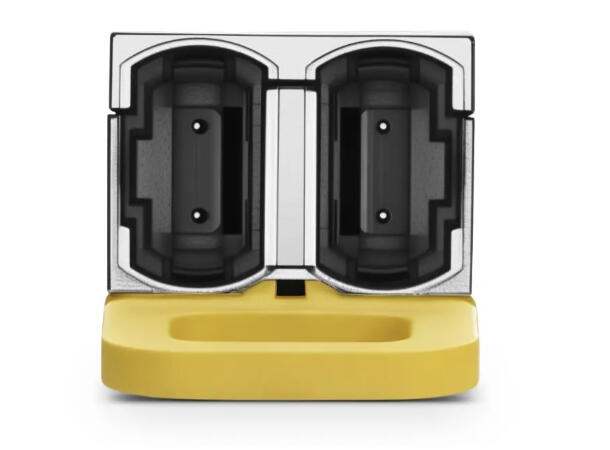

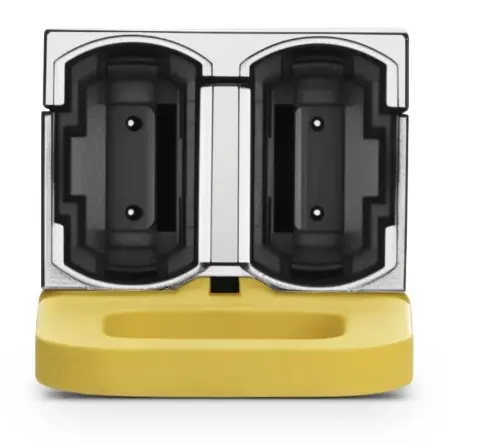

• Connector Type: Dual MTP/MPO-12 APC
• Transmitter Type: EML
• Receiver Type: PIN
Optical Performance
• Transmit Power (Tx): –2.9 to +4 dBm
• Minimum Receiver Sensitivity (Rx): –5.9 dBm
• Receiver Overload: +4 dBm
• Optical Power Budget: 3 dB
• Extinction Ratio: = 3.5 dB
Electrical & Functional Features
• Power Consumption: = 16.5 W
• CDR / DSP: Integrated TX & RX DSP with Clock and Data Recovery
• Digital Diagnostics (DOM/DDM): Supported
• Packaging Technology: COB (Chip-on-Board)
Environmental & Compliance
• Operating Temperature: Commercial: 0 °C to 70 °C (32 °F to 158 °F)
• Standards Compliance:
o QSFP-DD MSA Hardware Rev 7.0
o CMIS Rev 5.0
o IEEE 802.3cu-2021
o IEEE 802.3ck-2022
Warranty
• Warranty Period: 5 years
