GLOBALfiber 9ch CWDM BiDi Mux/Demux – LGX / 1U Rack

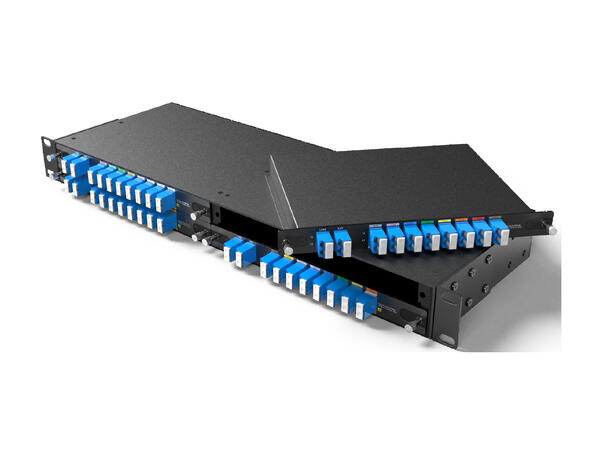

The GLOBALfiber 9-channel CWDM BiDi Mux/Demux is a high-quality passive CWDM solution enabling bi-directional transmission of up to 9 channels (18 wavelengths). It is designed for environments where fiber resources are limited, but requirements for capacity, stability, and scalability remain high.
The solution is based on Coarse Wavelength Division Multiplexing (CWDM) technology and is delivered as a plug-in LGX module, compatible with a 4-slot 1U rack, providing a clean, flexible, and space-efficient installation in central offices and data centers.
Function and Applications
The Mux/Demux units are used in pairs and transmit and receive different wavelengths in each direction (BiDi). This enables multiple services to operate simultaneously over the same fiber, including:
• 1G / 10G Ethernet
• SDH / SONET
• Fibre Channel 1G / 2G / 4G / 8G
Typical application areas include telecom and broadband networks, data centers, broadcast and TV, finance, government, cloud infrastructure, and other fiber-constrained environments.
Wavelength Configuration

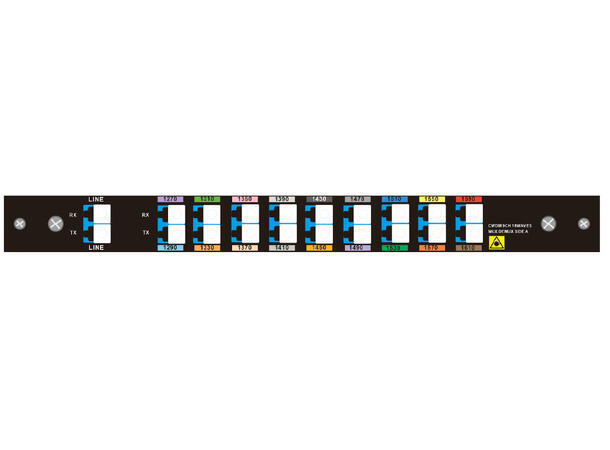

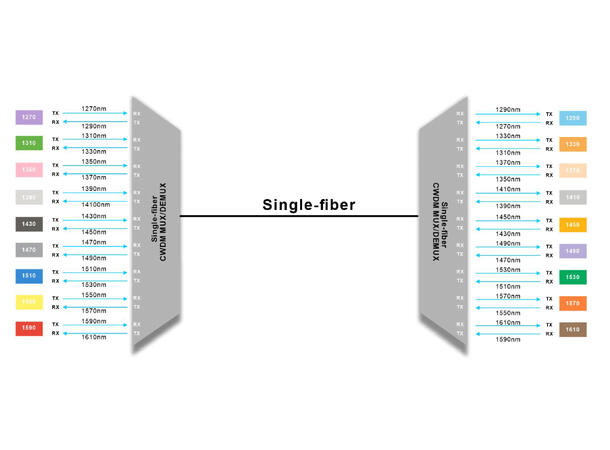

Total of 9 channels (18 wavelengths) across 1270–1610 nm
Side A
• RX: 1270–1590 nm
• TX: 1290–1610 nm
Side B
• RX: 1290–1610 nm
• TX: 1270–1590 nm
Technical Specifications
• Technology: TFF (Thin Film Filter)
• Channel Spacing: 20 nm
• Insertion Loss: = 3.0 dB
• Total Link Loss (A+B): = 3.8 dB
• Return Loss: = 45 dB
• Channel Isolation:
o Adjacent = 30 dB
o Non-adjacent = 45 dB
• Connector: LC/UPC
• Operating Temperature: –40 °C to +85 °C
• Storage Temperature: –40 °C to +85 °C
Mechanical Specifications
• Form Factor: Plug-in LGX module
• LGX Dimensions: approx. 215 × 150 × 20 mm
• Rack Compatibility: 4-slot 1U, 19-inch rack
• Weight:
o LGX module: approx. 0.5 kg
o Fully populated 1U rack: approx. 2.5 kg
Product Variants
• GF-CM18-LGX01-2761-A – Side A
• GF-CM18-LGX01-2761-B – Side B
