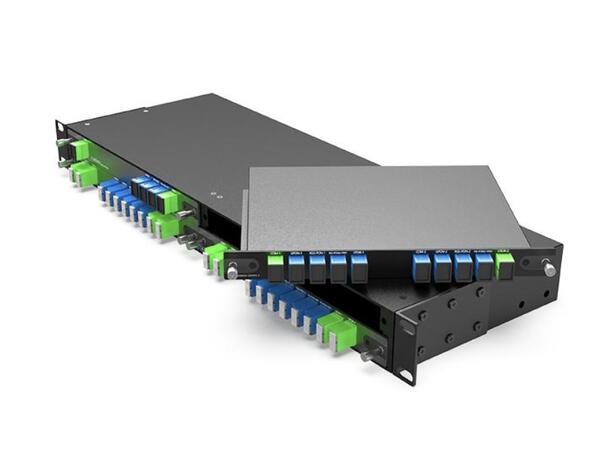

The GLOBALfiber GF-1U02-4LGX is a 4-slot 19-inch 1U rack chassis for installing up to 4 LGX modules in a standard equipment rack. It provides a dedicated mounting location for optical Mux/Demux modules and helps organise a modular fiber installation.
The steel enclosure has a black powder-coated finish and rounded corners. Select the chassis by the size and mounting arrangement of the LGX modules you intend to install; slot count alone does not establish compatibility with every LGX housing. The chassis provides mechanical support, while the installed optical modules determine wavelength coverage, connector types and link performance.
Key specifications
| Specification |
Details |
| Product number |
GF-1U02-4LGX |
| Product type |
Mechanical LGX rack chassis |
| Module capacity |
Up to 4 LGX modules |
| Rack mounting |
19-inch; 1U |
| Material and finish |
SPCC steel; black powder coating |
| Dimensions |

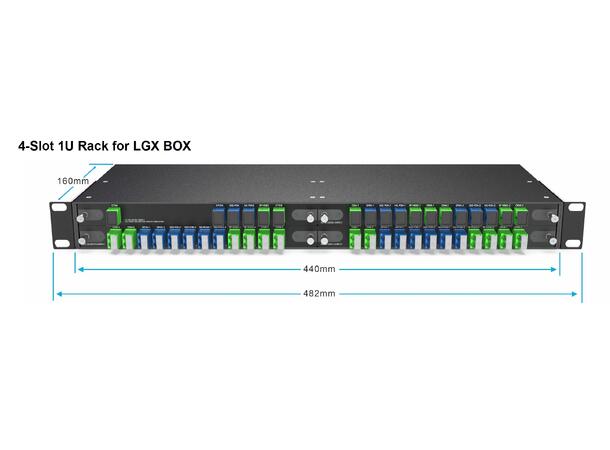

440 × 160 × 44 mm (W × D × H) |
Installation requirements
Confirm the dimensions and mounting arrangement of the selected LGX modules before installation. Leave sufficient clearance for connector access and fiber routing.
