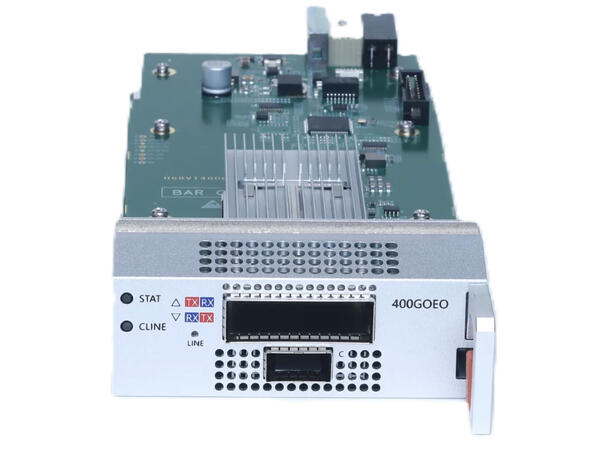

400G OEO Transponder
The 400G OEO / Converter / Transponder is a high-capacity coherent DWDM transport module designed to convert and transport 100G and 400G client services over a coherent 400G DWDM line interface. The client side uses QSFP-DD interfaces and supports 400GE, 100GE, 100GE FlexE and OTU4 services. The line side uses a CFP2-DCO coherent DWDM module for up to 400G line-side transmission. The module provides advanced Ethernet performance monitoring, LLDP, latency measurement and FEC functionality. The configuration occupies 1 slot in the transport platform.
Features
• Supports 400G OEO conversion and coherent DWDM transmission
• Supports 1 × 400GE client-side service
• Supports multiple 100GE client-side services
• Supports client-side service types including:
o 100GE
o 100GE FlexE
o OTU4
o 400GE
• Client-side optical interfaces based on QSFP-DD
• Supports QSFP-DD optical technologies including:
o DR
o LR
o Other compatible 100G/400G optical interfaces
• Line side supports 1 × 400G coherent DWDM service
• Line interface based on CFP2-DCO coherent technology
• Supports tunable coherent DWDM operation
• Supports frequency range from 191.3 THz to 196.1 THz
• Supports:
o 50 GHz channel spacing
o 75 GHz channel spacing
o 100 GHz channel spacing
o 150 GHz channel spacing
• Supports adjustable optical transmit power depending on the installed DCO module
• Supports FEC
• Supports Ethernet RMON performance monitoring
• Supports monitoring of:
o Transmitted packets
o Received packets
o Transmitted bytes
o Received bytes
o Port utilization
o CRC errors
o Error packets
• Supports LLDP – Link Layer Discovery Protocol
• Supports transmission delay / latency measurement
• Supports coherent modulation formats including:
o DP-QPSK
o 16QAM
• Supports OFEC
• Suitable for metro, regional, long-haul and DCI networks
• Occupies 1 slot
Technical Specifications
• Product Type: 400G OEO / Converter / Coherent DWDM Transponder
• Maximum Client-Side Capacity: Up to 400 Gbps
• Maximum Line-Side Capacity: 400 Gbps
• Client-Side Data Rates:
o 100 Gbps
o 400 Gbps
• Line-Side Data Rate: 1 × 400 Gbps
• Client-Side Interface: QSFP-DD
• Line-Side Interface: 1 × CFP2-DCO coherent DWDM
• Client-Side 400G Interface: 1 × 400G QSFP-DD
• Supported Client Services:
o 100GE
o 100GE FlexE
o OTU4
o 400GE
o Other compatible Ethernet and transport services
• QSFP-DD Optical Technologies:
o DR
o LR
o Other compatible optical standards
• Optical Frequency Range: 191.3–196.1 THz
• Channel Spacing:
o 50 GHz
o 75 GHz
o 100 GHz
o 150 GHz
• Wavelength / Frequency Tuning: Adjustable within the supported coherent DWDM frequency range
• Optical Transmit Power: Adjustable within the supported range of the installed CFP2-DCO module
• Coherent Modulation Formats:
o DP-QPSK
o 16QAM
• Forward Error Correction: FEC / OFEC supported
• Ethernet RMON Monitoring: Supported
• Packet Statistics: Supported
• Byte Statistics: Supported
• Port Utilization Monitoring: Supported
• CRC Error Monitoring: Supported
• Error Packet Monitoring: Supported
• LLDP: Supported
• Delay Measurement: Supported
• Card Width: 1 slot
• Dimensions: 107 mm (W) × 254 mm (D) × 42 mm (H)
• Maximum Power Consumption: =75 W
• Operating Temperature: -5°C to +45°C
• Storage Temperature: -40°C to +80°C
• Relative Humidity: 5% to 95%, non-condensing
OSNR Performance
• 100G DP-QPSK with OFEC: OSNR tolerance of 12.5 dB
• 200G DP-QPSK with OFEC: OSNR tolerance of 14 dB
• 400G 16QAM with OFEC: OSNR tolerance of 20 dB
Typical Applications
• 400G Optical-Electrical-Optical conversion
• 400G coherent DWDM transmission
• 100G to 400G service transport
• Data Center Interconnect, DCI
• Metro DWDM networks
• Regional optical transport networks
• Long-haul DWDM networks
• Point-to-point coherent optical links
• ROADM-based optical networks
• Conversion between short-reach QSFP-DD client optics and coherent DWDM
• Capacity upgrades of existing C-band DWDM infrastructure
