GPON / XGS-PON + 2CH CWDM (1530 / 1550 nm) WDM Multiplexer
Single Fiber LGX Module for Passive Optical Networks
The GPON / XGS-PON + 2CH CWDM WDM multiplexer is a passive optical module designed to combine GPON, XGS-PON and CWDM transport wavelengths on a single fiber. This solution enables network operators to maximize fiber capacity while maintaining compatibility with existing PON infrastructure.

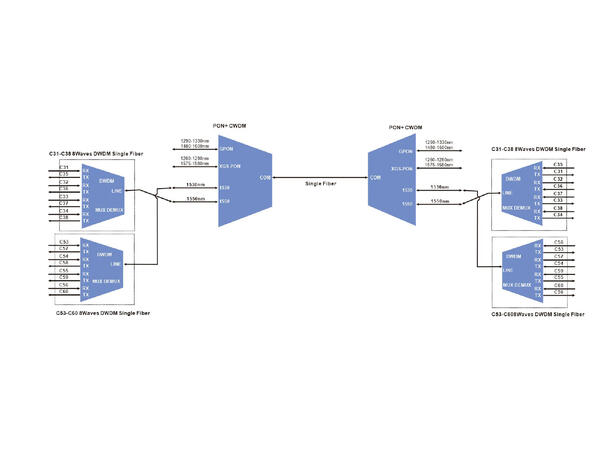

The module allows GPON (2.5G), XGS-PON (10G) and CWDM transport channels (1530 nm and 1550 nm) to coexist on the same fiber pair. It is commonly used in FTTH access networks, broadband infrastructure and mobile transport networks where both access traffic and additional wavelength services must be transported simultaneously. The device is delivered as a plug-in LGX module, making it suitable for installation in LGX4 enclosures or 1U rack systems.
Key Features
• Combines GPON, XGS-PON and CWDM wavelengths on a single fiber
• Supports 1530 nm and 1550 nm CWDM transport channels
• Passive device – no power required
• Enables fiber capacity expansion without deploying additional fibers
• Designed for FTTH, broadband access and telecom networks
• LGX plug-in module compatible with 1U 4-slot rack chassis
• High optical isolation and low insertion loss
• Supports coexistence of multiple PON technologies
Applications
• FTTH access networks
• GPON and XGS-PON coexistence deployments
• Broadband and ISP infrastructure
• Mobile fronthaul / backhaul networks
• Smart city and enterprise fiber networks
• Fiber capacity expansion without new fiber installation
Optical Specifications
Wavelength Bands
• GPON: 1290 – 1330 nm / 1480 – 1550 nm
• XGS-PON: 1260 – 1280 nm / 1575 – 1580 nm
• CWDM Channels: 1530 nm / 1550 nm (±7 nm)
Optical Performance
• Insertion Loss (COM-GPON): < 1.5 dB
• Insertion Loss (COM-XGS-PON): < 1.5 dB
• Insertion Loss (COM-CWDM): < 1.5 dB
• Wavelength Isolation: > 30 dB
• Return Loss: > 55 dB
• Directivity: > 55 dB
• Polarization Dependent Loss (PDL): < 0.3 dB
• Polarization Mode Dispersion (PMD): < 0.2 ps
• Optical Power Handling: < 300 mW
Environmental Specifications
• Operating Temperature: -40 °C to +85 °C
• Storage Temperature: -40 °C to +85 °C
• Operating Humidity: 5 – 90 % RH
Mechanical Specifications

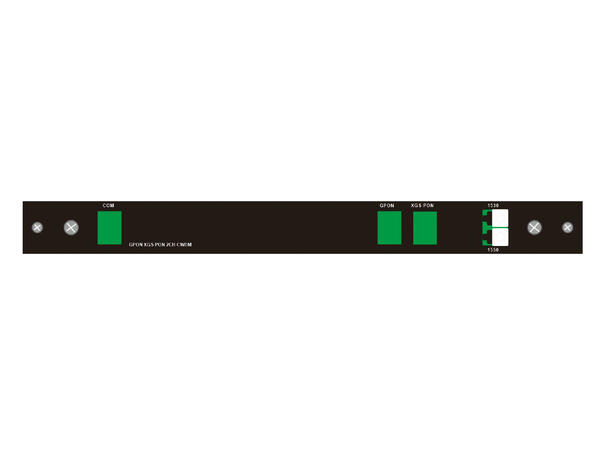

• Module Type: LGX plug-in module
• LGX Module Dimensions: 215 × 150 × 20 mm

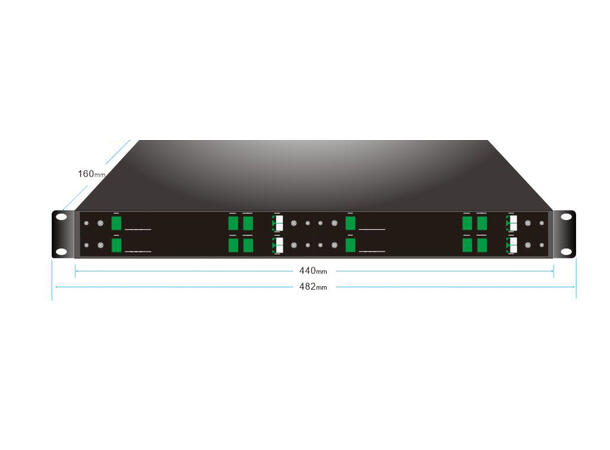

• 1U Rack Dimensions: 440 × 160 × 44 mm
• LGX Module Weight: 0.5 kg
• 1U Rack Weight: 2.5 kg
Interfaces
• GPON / XGS-PON / COM Port: SC/APC
• CWDM Ports: LC/APC
• Fiber Type: Single Mode Fiber (SMF)
