PLC PON Splitters – High-Reliability Optical Power Distribution
GLOBALfiber PLC Splitters for GPON, XGS-PON and Passive Optical Networks
Product Overview
GLOBALfiber PLC PON Splitters are based on advanced silica glass waveguide technology with precision-aligned fiber pigtails, delivering a compact, reliable, and cost-effective solution for optical power distribution in passive fiber networks.
Designed for modern GPON and XGS-PON deployments, these splitters provide excellent optical performance across a wide wavelength range from 1260 nm to 1650 nm, with stable operation in harsh environments from –40 °C to +85 °C. The result is consistent signal quality, low insertion loss, and long-term network stability.
GLOBALfiber PLC splitters are available in standard 1×N configurations (1×2 to 1×32) as well as 2×N configurations (2×2 to 2×32) for protected or redundant network designs.
Key Features
• Compact and space-efficient design
• Low insertion loss and low polarization dependent loss (PDL)
• Excellent channel uniformity
• High return loss and optical stability
• Wide operating wavelength range (1260–1650 nm)
• Extended operating temperature range (–40 °C to +85 °C)
• Available in LGX plug-in and 19” rack-mount formats
• Custom configurations and packaging available
Typical Applications
• GPON and XGS-PON access networks
• FTTx (FTTH, FTTB, FTTC) deployments
• Metro, LAN and WAN optical networks
• Passive Optical Networks (PON)
• CATV and RF overlay systems
1×N PLC Splitters – Standard PON Distribution 1×N PLC splitters are designed for standard PON architectures where a single OLT port is passively split to serve multiple ONUs.
Available configurations include 1×2, 1×4, 1×8, 1×16 and 1×32, supporting efficient subscriber expansion while maintaining stable optical performance.
2×N PLC Splitters – Redundant and Protected Architectures
2×N PLC splitters feature two independent input fibers feeding the same output ports, enabling protected PON designs and improved network availability.
Available configurations include 2×2, 2×4, 2×8, 2×16 and 2×32.
Optical and Environmental Performance
• Fiber type: SMF-28e or customer-specified single-mode fiber
• Operating wavelength: 1260–1650 nm
• High return loss (= 50 dB)
• Low polarization dependent loss
• Excellent temperature stability
• Fully compliant with Telcordia reliability standards
Compliance and Reliability
GLOBALfiber PLC PON Splitters are designed and manufactured in accordance with industry-recognized standards:
• Telcordia GR-1209-CORE
• Telcordia GR-1221-CORE
These standards ensure long-term reliability, mechanical robustness and environmental stability suitable for carrier-grade networks.
Mechanical Formats and Packaging

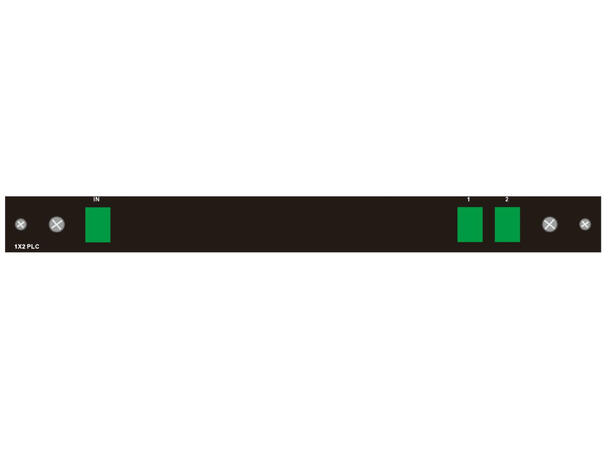

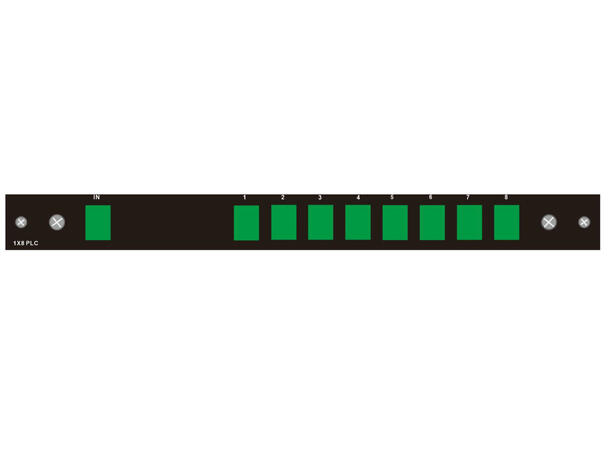

• LGX plug-in modules (215 × 150 × 20 mm)
• 19” rack-mount units (1U) for high-density deployments
• Connector options include SC/APC and LC/APC, depending on configuration
