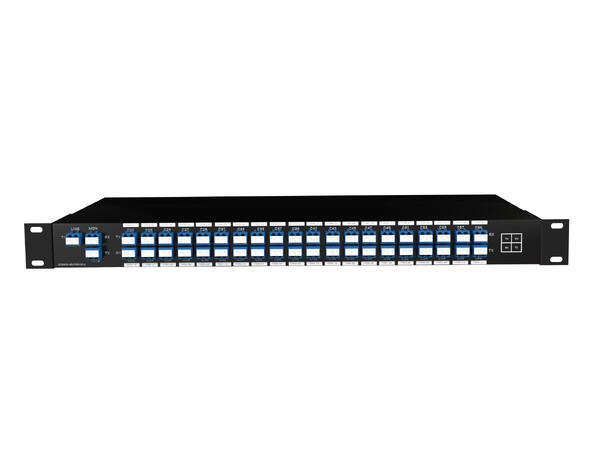

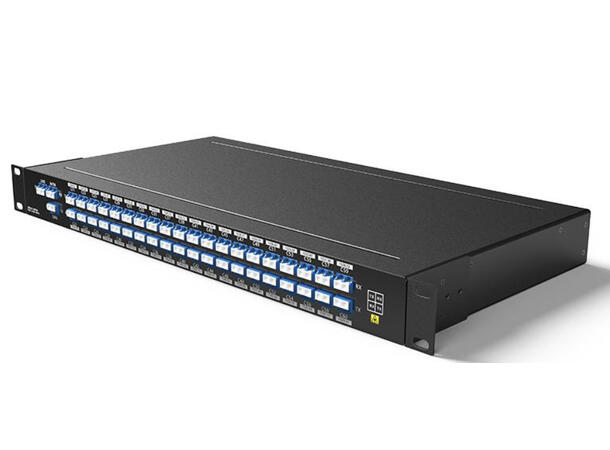

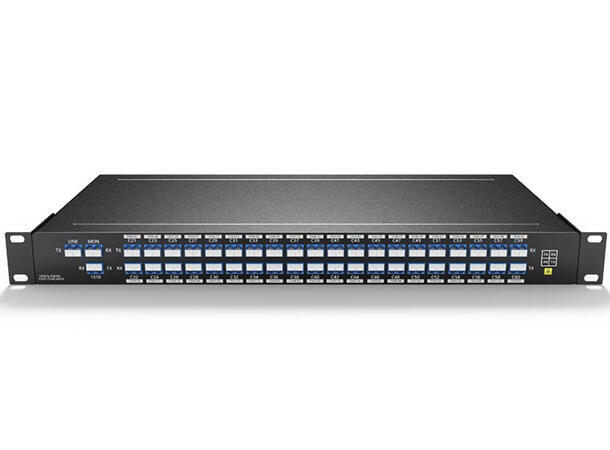

GLOBALfiber 40-Channel DWDM Mux/Demux (C21–C60, 100GHz, 1310nm + Monitor Port, 19” 1RU)
The GLOBALfiber 40-channel DWDM Mux/Demux is a passive wavelength-division multiplexing unit optimized for high-capacity optical transport. It operates across the ITU-T G.694.1 100GHz DWDM grid, covering channels C21 to C60, and is designed to maximize spectral efficiency in the C-band. With low insertion loss and integrated 1310nm legacy support, this unit is ideal for point-to-point long-haul, metro, and data center interconnect applications.
Engineered for reliability, flexibility, and minimal maintenance, the solution can be deployed alongside optical amplifiers and dispersion compensation modules (DCM) to support extended transmission distances.
Key Features
• Supports 40 DWDM channels (C21–C60) on the 100GHz (0.8nm) ITU grid
• Passive design: no power required, stable and maintenance-free
• Low insertion loss: wavelength ports = 3.5 dB
• Integrated 1310nm port for coexistence with:
o 1G LX/SX
o 10G LR/ER
o 40G LR4/ER4
o 100G LR/ER4/ZR4
• Monitor (MON) port for real-time link power and troubleshooting
• Compact 19” 1RU rack-mount form factor
• Ideal for carrier, metro, enterprise, broadcast, and cloud network environments
Technical Specifications
• Wavelength Channels: 40 channels (C21–C60), ITU-T G.694.1 compliant
• Channel Spacing: 100GHz (˜ 0.8nm) grid
• Optical Technology: AAWG (Gaussian type)
• Insertion Loss (per DWDM channel): = 3.5 dB
• Combined Link Loss (Mux + Demux): = 7 dB
• 1310nm Legacy Port:
o Passband: 1260–1360 nm
o Insertion Loss (1310 nm port): = 0.8 dB
• Monitor (MON) Port: Insertion Loss = 26 dB (1% tap)
• Return Loss: = 40 dB
• Directivity: = 40 dB
• Polarization-Mode Dispersion (PMD): = 0.1 ps
• Polarization-Dependent Loss (PDL): = 0.5 dB
• Channel Isolation:
o Adjacent Channels: = 25 dB
o Non-Adjacent Channels: = 29 dB
• Operating Temperature: –5°C to +65°C
• Storage Temperature: –40°C to +85°C
• Form Factor: 19” 1RU rack-mount
• Connectors: LC/UPC
• Dimensions (H × W × D): 44 × 440 × 230 mm
• Net Weight: ~3.5 kg
• Power Requirements: None (fully passive device)
Applications
• DWDM Long-Haul Networks
• Metro Transport and DCI (Data Center Interconnect)
• ISP and Carrier Network Capacity Expansion
• Government, Finance, and Cloud Infrastructure
• Broadcast and Media Distribution
