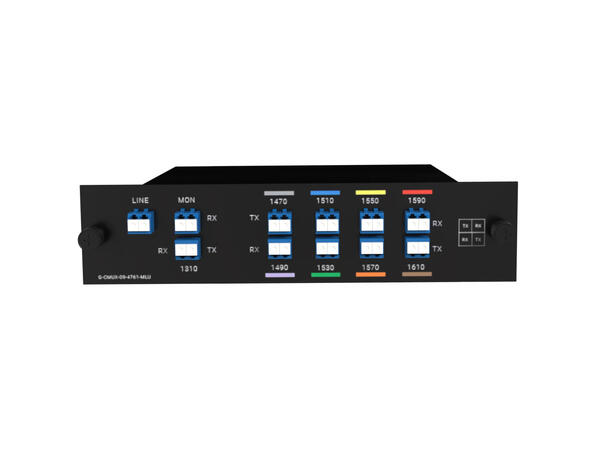

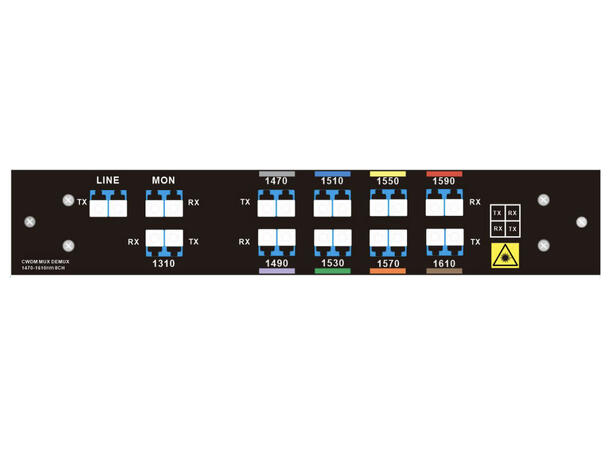

The GLOBALfiber 8+1 Channel CWDM Mux/Demux (C47-C61 + 1310 nm + Monitor Port, LC, LGX Box) is a premium passive optical module designed to expand fiber capacity in demanding networks. With eight CWDM wavelengths (1470 nm–1610 nm), a dedicated 1310 nm wide-band port for legacy traffic, and built-in monitor port for real-time link supervision, this module is ideal for metro, data-centre, broadcast, finance and cloud back-haul networks where fiber pairs are scarce.
The product features plug-in LGX form-factor, ultra-low insertion loss, high channel isolation, and wide operating temperature range. It enables protocol-transparent transmission of 1G/10G Ethernet, SDH/SONET and higher speeds over a single fiber pair—streamlining deployment and reducing cost.
Key Features
• Supports 8 CWDM channels 1470 nm–1610 nm with 20 nm spacing
• Includes 1310 nm port for legacy services (1G, 10G, 40G, 100G)
• Ultra-low insertion loss: Regular =2.4 dB, Link =2.4 dB
• Channel isolation: Adjacent =30 dB, Non-adjacent =45 dB
• Return loss =45 dB, directivity =45 dB
• Compact LGX box (190×200×39 mm) fits 1U rack slot
• Operating temperature: –40 °C to +85 °C
• Fiber type: Singlemode (SMF-28e)
• Monitor port for non-invasive link inspection
Technical Specifications
• Channel Spacing: 20 nm (ITU CWDM Grid)
• Wavelength Range: 1470 nm – 1610 nm (8 channels)
• 1310 nm port bandwidth: 1260 nm–1360 nm, insertion loss =0.8 dB
• Insertion Loss (Regular): =2.4 dB, Link: =2.4 dB
• Channel Isolation (Adjacent): =30 dB; Non-Adjacent: =45 dB
• Polarization Dependent Loss (PDL): =0.3 dB
• Polarization Mode Dispersion (PMD): =0.1 ps
• Return Loss: =45 dB; Directivity: =45 dB
• Operating Temperature: –40 °C to +85 °C; Storage: –40 °C to +85 °C
• Package Dimensions: 190 mm × 200 mm × 39 mm; Net Weight: 0.5 kg
Applications
• CWDM metro and access fiber networks
• Data-centre backbone and cloud infrastructure
• Broadcast, finance and government fibre networks
• Points where fiber count is limited, and wavelength multiplexing is required
• Add/drop and point-to-point CWDM transmission
