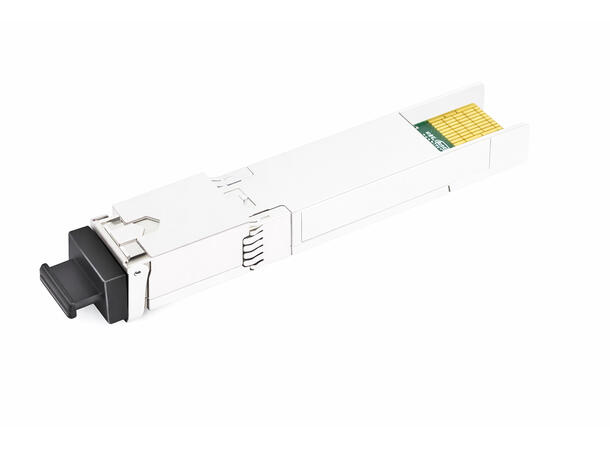

XGS-PON / GPON Combo OLT Transceiver – SFP-DD (C+, I-Temp)
Product Overview
The GLOBALfiber XGS-PON / GPON Combo OLT Transceiver (C+ class) is a carrier-grade SFP-DD optical module designed for 20 km PON deployments requiring higher optical margins than standard B+ solutions. It supports simultaneous XGS-PON and GPON operation on the same fiber, enabling a controlled and non-disruptive migration from GPON to XGS-PON.
With increased transmit power, improved receiver sensitivity, and industrial temperature operation, this module is well suited for access networks with higher split ratios, longer distribution fibers, or stricter margin requirements.
Key Features
• Dual-mode XGS-PON + GPON Combo OLT transceiver
• C+ optical class optimized for 20 km reach
• SFP-DD form factor for modern, high-density OLT platforms
• Concurrent GPON and XGS-PON services on a single PON
• Industrial temperature operation (I-Temp)
• SC optical interface
• Seamless coexistence with legacy GPON ONTs and XGS-PON ONTs
Technical Specifications
General
• Transceiver Type: XGS Combo PON OLT Transceiver
• Form Factor: SFP-DD
• GLOBALfiber Part Number: SFPDD-XGSOLT-C-I
• Description: XGS-PON / GPON MPM C+, Industrial Temperature
• Maximum Reach: 20 km
• Optical Power Budget: 35 dB

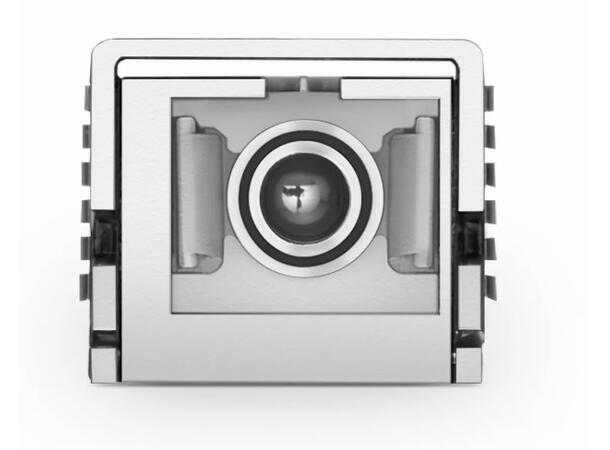

• Optical Interface: SC/UPC
• Operating Temperature: Industrial (I-Temp)
XGS-PON Optical Parameters
• Wavelength (TX / RX): 1577 nm TX / 1270 nm RX
• OLT Optical Class: C+
• Transmit Output Power: +5 to +8 dBm
• Receiver Overload: –8 / –10 dBm
• Receiver Sensitivity: –29 / –30.5 dBm
GPON Optical Parameters
• OLT Optical Class: C+
• Transmit Output Power: +3 to +7 dBm
• Receiver Overload: –12 dBm
• Receiver Sensitivity: –32 dBm
Standards Compliance
• ITU-T G.984 (GPON)
• ITU-T G.9807.1 (XGS-PON)
• Designed for SFP-DD based PON OLT platforms
Typical Applications
• FTTH and FTTB access networks with higher split ratios
• GPON to XGS-PON migration projects
• Central offices and access nodes requiring extra optical margin
