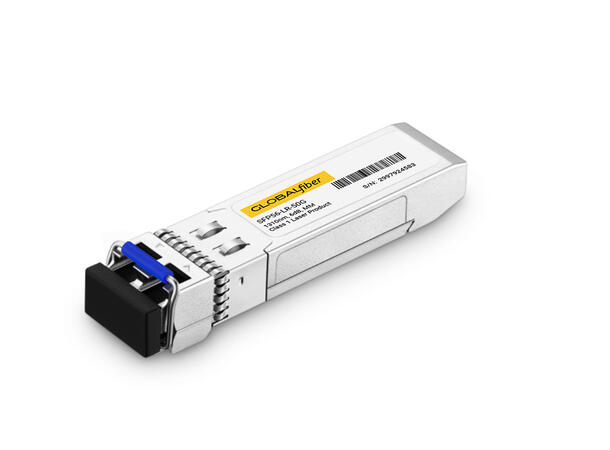

10G /25G/50G SFP56 LR Transceiver – 10 km (S50G-LR2)
The S50G-LR2 is a high-performance multi-rate SFP56 LR optical transceiver designed for 10G, 25G, and 50G Ethernet applications over single-mode fiber. Supporting 50GBASE-LR and eCPRI wireless fronthaul, this module enables flexible network upgrades while maintaining backward compatibility with existing infrastructure.
Built around a 1310 nm DFB laser and PIN photodiode receiver, the S50G-LR2 delivers reliable transmission up to 10 km with low power consumption below 2 W. It supports PAM4 modulation at 26.5625 GBd for 50G, as well as NRZ modulation for 25G and 10G operation, making it ideal for mobile networks, access aggregation, and data center interconnects.
The transceiver complies with IEEE 802.3cd, SFF-8472, SFF-8432, and IEEE 802.3 50GBASE-LR standards, and includes integrated Digital Diagnostic Monitoring (DDM) for real-time operational visibility.
Key Features
• Multi-rate support: 10G / 25G / 50G
• Supports 50GBASE-LR and eCPRI wireless applications
• Up to 10 km transmission over single-mode fiber (SMF)
• PAM4 (50G) and NRZ (10G/25G) modulation
• Low power consumption < 2 W
• Duplex LC connector
• Integrated Digital Diagnostic Monitoring (DDM)
• Single +3.3 V power supply
• Commercial and industrial temperature options
Technical Specifications (Optical)
• Form factor: SFP56
• Fiber type: Single-Mode Fiber (SMF)
• Connector: Duplex LC
• Management interface: SFF-8472 (2-wire)
• Power supply: +3.3 V
• Power consumption: < 2 W
Transmitter
• Wavelength: 1310 nm (1300–1320 nm range)
• Laser type: DFB
• Data rates supported:
o 50G PAM4 @ 26.5625 GBd
o 25G NRZ @ 25.78 Gbps
o 10G NRZ @ 10.3125 Gbps
• Average output power: -4.5 to +4.2 dBm
• OMA (outer): -1.5 to +4 dBm
• Extinction ratio: = 3.5 dB
• Optical return loss tolerance: up to 20 dB
• Transmitter reflectance: -26 dB
• TDECQ (50G): 3.2 dB
Receiver
• Wavelength range: 1295–1325 nm
• Receiver type: PIN photodiode
• Receiver sensitivity:
o 50G (OMA): Max(-8.4 dBm, SECQ - 9.8 dB)
o 25G: < -12 dBm
o 10G: < -14.5 dBm
• Maximum receive power: +3 dBm
• Damage threshold: +3.8 dBm
• LOS assert: -30 dBm
• LOS de-assert: -11 to -14 dBm (rate-dependent)
• LOS hysteresis: 0.5 dB
Environmental
• Commercial temperature: 0°C to +70°C
• Industrial temperature: -40°C to +85°C (Optional)
Typical Applications
• 5G / 4G eCPRI fronthaul
• 50G Ethernet access and aggregation
• Telecom and FTTx networks
• Data center access links
