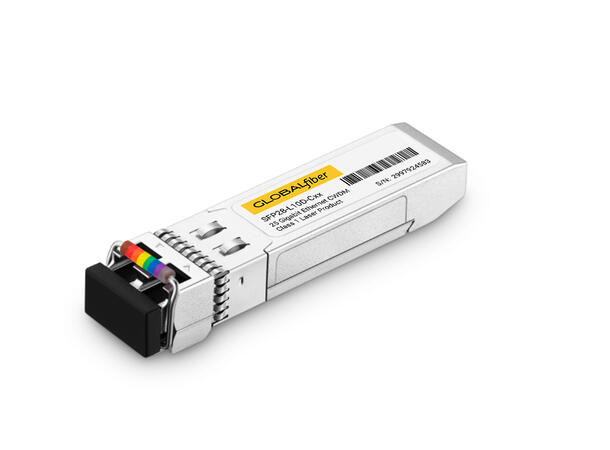

GLOBALfiber S25G-L10-Cxx is a 25G SFP28 CWDM optical transceiver for links up to 10 km over single-mode fiber. Each module uses one selected optical channel for wavelength-multiplexed Ethernet links.
Available coding and compatibility
Available coding: Arista, Cisco, Dell, Extreme, Fortinet, Generic, HP, Huawei, Intel, Juniper, NVIDIA-Mellanox(ETH). Provide the equipment model, port configuration and software version so support can be checked. Coding does not confirm compatibility with every model or protocol. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification | Details |
|---|
| Product number | S25G-L10-Cxx |
|---|
| Form factor | SFP28 |
|---|
| Capacity | 25G |
|---|
| Applications | 25G Ethernet; CPRI 10 with suitable host support and coding |
|---|
| Power dissipation | <2.3 W |
|---|
| Reach and fiber | 10 km over single-mode fiber |
|---|
| Nominal wavelength | One selected CWDM channel: 1471, 1491, 1511, 1531, 1551, 1571 nm |
|---|
| Optical connectors | Duplex LC |
|---|
| Diagnostics | Digital optical monitoring (DOM/DDM) |
|---|
Installation requirements
Match the selected wavelength to the multiplexer and remote optical interface. Verify host settings and the complete optical link budget.
