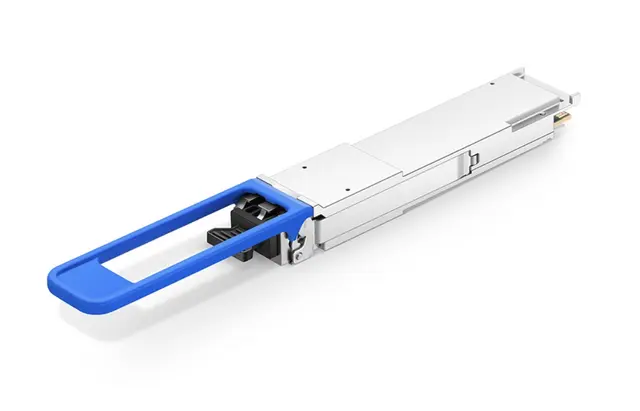

GLOBALfiber QSFP56-200G-LR4 is a 200G QSFP56 LR4 transceiver for single-mode connections up to 10 km. Its duplex LC/UPC interface supports data centre and 5G backhaul links that require longer reach, with digital diagnostics providing access to real-time module operating parameters.
Available coding and compatibility
Available coding: Arista, Cisco, Generic, H3C. Provide the equipment model, port configuration and software version so support can be checked. Available coding does not confirm compatibility with every model. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification | Details |
|---|
| Product number | QSFP56-200G-LR4 |
|---|
| Form factor | QSFP56 |
|---|
| Capacity | 200G |
|---|
| Applications | 200G Ethernet; data centres; 5G backhaul |
|---|
| Power dissipation | 8 W maximum |
|---|
| Reach and fiber | Up to 10 km over single-mode fiber |
|---|
| Nominal wavelength | 1310 nm |
|---|
| Optical connectors | Duplex LC/UPC |
|---|
| Diagnostics | Digital optical monitoring (DOM/DDM) |
|---|
Installation requirements
The module has no built-in FEC; verify the required host FEC configuration. Check cooling, power capacity and the optical loss budget before installation.
