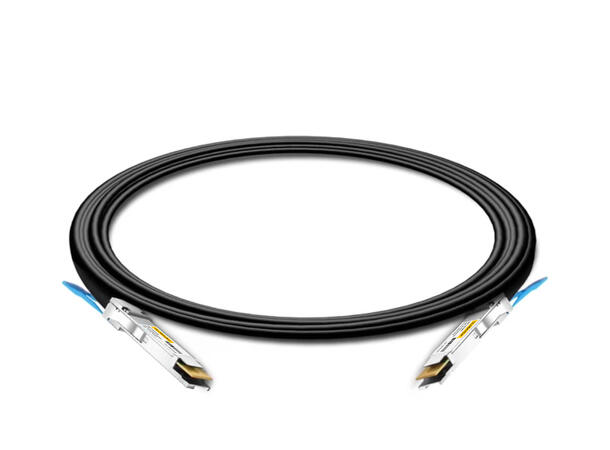

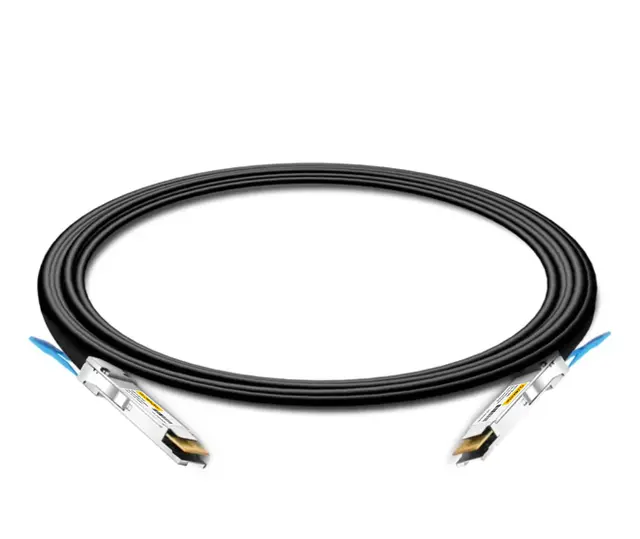

800G QSFP-DD Passive DAC Twinax Cable – (QSFP-DD to QSFP-DD)
The 800G QSFP-DD Passive Direct Attach Copper (DAC) Twinax cable is engineered for ultra-high-speed 800G Ethernet connectivity in next-generation data centers. Designed for short-reach interconnects, it enables reliable, low-latency communication between 800G QSFP-DD ports in high-density switching environments.
This passive copper cable integrates 8 high-speed differential lanes, each supporting up to 100Gb/s using PAM4 modulation, delivering an aggregate bandwidth of 800Gbps. It complies with IEEE 802.3ck and QSFP-DD MSA specifications, ensuring interoperability and industry-standard compatibility.
By eliminating the need for separate optical modules and patch cords, this DAC solution significantly reduces cost, power consumption, and deployment complexity in short-distance applications.
Key Features
• Supports 800G Ethernet (800Gbps aggregate bandwidth)
• QSFP-DD to QSFP-DD passive copper connectivity
• 8× 100G PAM4 electrical lanes
• Ultra-low power consumption (=0.005W per end)
• Optimized for short-reach, high-density data center interconnects
• Cost-effective alternative to optical transceivers
• Fully compliant with IEEE 802.3ck and QSFP-DD MSA
Technical Specifications
• Form Factor: QSFP-DD to QSFP-DD
• Maximum Data Rate: 800Gbps
• Media Type: Copper
• Cable Type: Passive DAC Twinax
• Wire Gauge: 30AWG
• Modulation Format: 8× 100G PAM4
• Maximum Power Consumption: 0.005W per connector end
• Minimum Bend Radius: 69 mm
• Jacket Material: PVC (OFNR)
• Operating Temperature: 0 to 70°C
• Application: 800G Ethernet
• Standards & Protocols: QSFP-DD MSA, CMIS Rev 4.0, IEEE 802.3ck
• Warranty: 5 Yea
