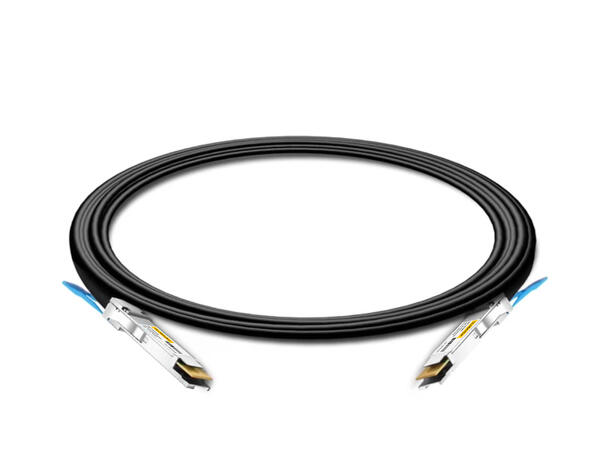

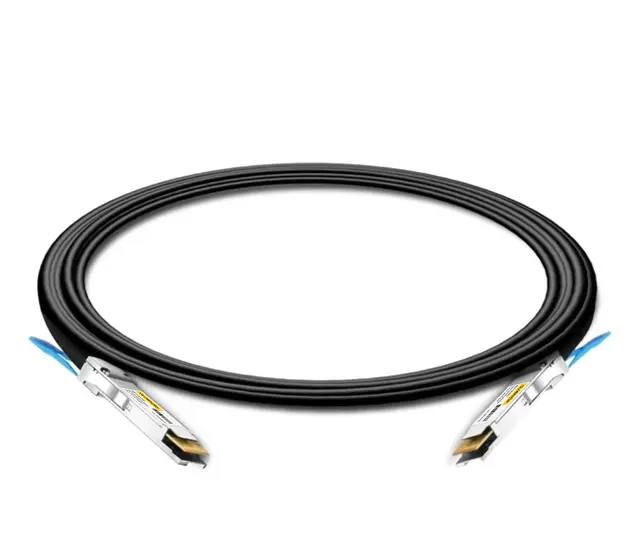

200G QSFP-DD DAC Twinax Cable – Passive Direct Attach Copper
The 200G QSFP-DD Direct Attach Copper (DAC) Twinax cable is designed to deliver high-bandwidth 200G connectivity for short-reach data center applications. It supports 200G Ethernet transmission and provides a cost-effective QSFP-DD to QSFP-DD copper interconnect solution.
This passive DAC cable is ideal for ultra-short links inside racks and between adjacent racks, enabling reliable 200-Gigabit connections between 200G QSFP-DD switch or router ports. With very low latency and minimal power consumption, it is an efficient alternative to optical transceivers for short distances.
Key Features
• Supports 200G Ethernet data rate (200Gbps)
• QSFP-DD to QSFP-DD direct copper connectivity
• Passive Twinax cable design
• Low power consumption (=0.1W per end)
• Optimized for short-reach data center interconnects
• Plug-and-play compatibility
• Cost-effective alternative to optical modules
Technical Specifications
• Form Factor: QSFP-DD to QSFP-DD
• Maximum Data Rate: 200Gbps
• Media Type: Copper
• Cable Type: Passive Twinax
• Wire Gauge: 28AWG
• Minimum Bend Radius: 40.5 mm
• Maximum Power Consumption: 0.1W per connector end
• Jacket Material: PVC
• Operating Temperature: 0 to 70°
• Compliance & Protocols: IEEE 802.3bj, QSFP-DD MSA, CMIS, SFF-8417
• Warranty: 5 Years
