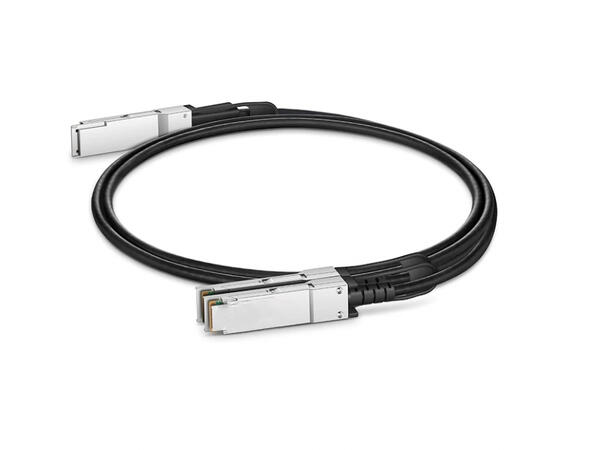

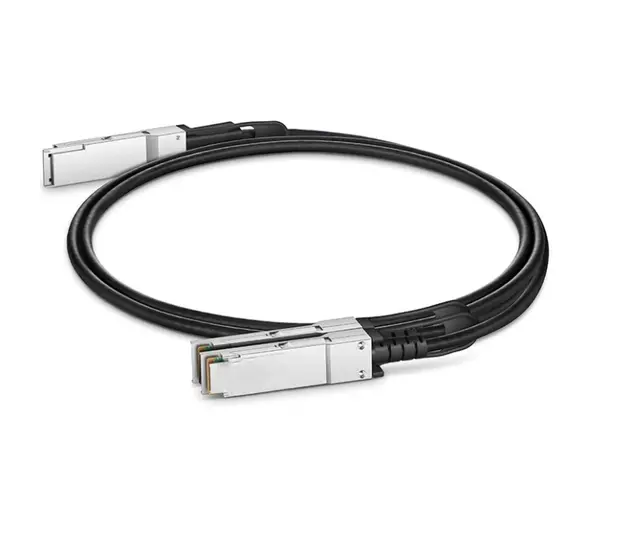

200G QSFP-DD to 2×100G QSFP28 DAC Breakout Cable – Passive Copper
The 200G QSFP-DD to 2×100G QSFP28 Direct Attach Copper (DAC) breakout cable provides a high-performance and cost-efficient solution for splitting a single 200G QSFP-DD port into two independent 100G QSFP28 connections.
Built on passive copper technology, this breakout DAC requires no additional power to ensure stable and reliable connectivity. It is fully compliant with industry standards including QSFP-DD MSA, IEEE 802.3bs (200GAUI-8), IEEE 802.3bm (CAUI-4), CMIS 4.0, SFF-8661, and SFF-8636.
This cable is ideal for short-distance interconnections inside data centers and telecom equipment rooms, enabling flexible 200G to dual 100G architectures. It alsosupports configurations such as 80G to 2×40G, offering additional deployment flexibility in mixed-speed environments.
Key Features
• Converts 1×200G QSFP-DD port to 2×100G QSFP28 ports
• Passive copper breakout cable (no external power required)
• Supports 200G Ethernet applications
• Low latency and ultra-low power consumption
• Optimized for short-reach data center interconnects
Technical Specifications
• Form Factor: QSFP-DD to 2× QSFP28
• Maximum Data Rate: 200Gbps (aggregate)
• Media Type: Copper
• Cable Type: Passive Breakout DAC
• Wire Gauge: 30AWG
• Minimum Bend Radius: 35 mm
• Maximum Power Consumption:
o 0.1W (QSFP-DD end)
o 0.1W per QSFP28 end
• Modulation Format:
o QSFP-DD: 8×25G NRZ
o QSFP28: 4×25G NRZ
• DDM/DOM Support: Not supported
• Operating Temperature: 0 to 70°C
• Standards & Protocols: QSFP-DD MSA, SFF-8661, IEEE 802.3bs-200GAUI-8, IEEE 802.3bm-CAUI-4, CMIS 4.0, SFF-8636
• Jacket Material: PVC
• Warranty: 5 Years
