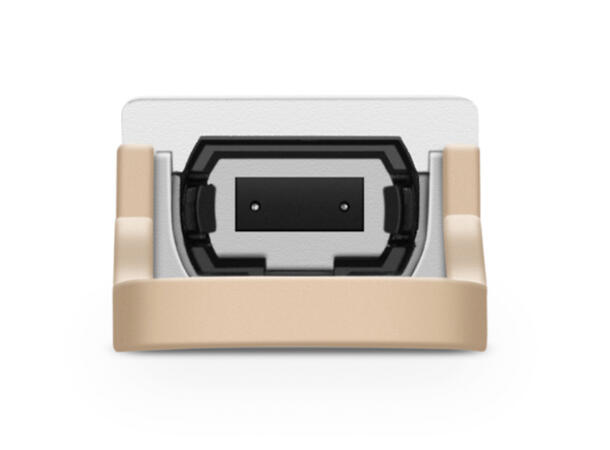

QSFP56 Optical Transceiver Module is designed for 200GBASE Ethernet throughput over MTP/MPO-12 connectors using OM4 multimode fiber (MMF) with a wavelength of 850nm up to 100 meters.
The transceiver is compliant with IEEE 802.3bs, 200GBASE-SR4, SFF-8636 & SFF-8665 standards. It is suitable for data centers, high performance computing networks, enterprise core and distribution layer applications.

Specifications:
Form Factor: QSFP56
Max Data Rate: 200Gbps
Wavelength: 850nm
Max Cable Distance: 70m@OM3/100m@OM4
Connector: MPO-12/UPC
Media: MMF
Transmitter Type: VCSEL 850nm
Receiver Type: PIN
TX Power: -6.5~4dBm
Minimum Receiver Power: -6.5dBm
Power Budget: 3.5dBm
Receiver Overload: 5dBm
Max Power Consumption: 5W
Extinction Ratio: >3dB
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C
Modulation (Electrical): 4x50G-PAM4
Modulation (Optical)
4x50G-PAM4
CDR (Clock and Data Recovery): TX, RX Built-in CDR
Inbuilt FEC: No
Protocols: IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8636

CMIS: 4.0

Application
200G Ethernet
Data centers Interconnect
High performance computing
