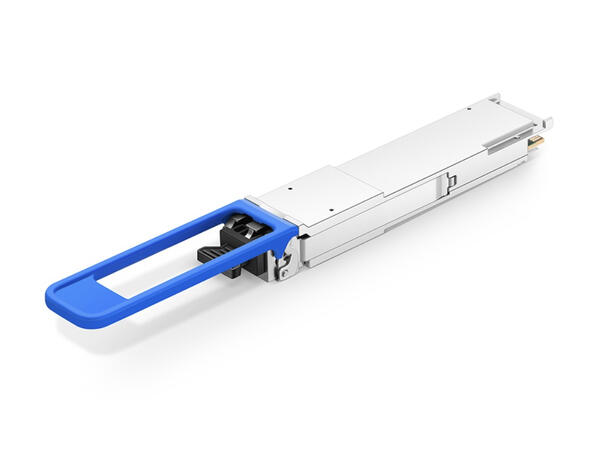

200GBASE-LR4 QSFP56 Optical Transceiver Module for Ethernet and Data Center, SMF, 1310nm, 10km, LC, DDM.
QSFP56 transceiver supports up to 10km link lengths over single-mode fiber (SMF) via an LC duplex connector.
This transceiver is compliant with SFF-8661,and IEEE 802.3bs standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable for 200G Ethernet, Data Center, and 5G backhaul.
Specifications:
Form Factor: QSFP56
Max Data Rate: 200Gbps
Wavelength: 1310nm
Max Cable Distance: 10km
Connector: Duplex LC/UPC
Media: SMF
Transmitter Type: DFB
Receiver Type: PIN
TX Power: -3.4~5.3dBm
Minimum Receiver Power: -9.7dBm
Power Budget: 6.3dBm
Receiver Overload: 5.1dBm
Max Power Consumption: 8W
Extinction Ratio: >3.5dB
DDM/DOM:Supported
Commercial Temperature Range: 0 to 70°C
Modulation (Electrical): 4x50G-PAM4
Modulation (Optical): 4x50G-PAM4
Inbuilt FEC: No
Protocols:IEEE 802.3bs, QSFP56 MSA, SFF-8661
CMIS: 4.0
Warranty: 5 Years
