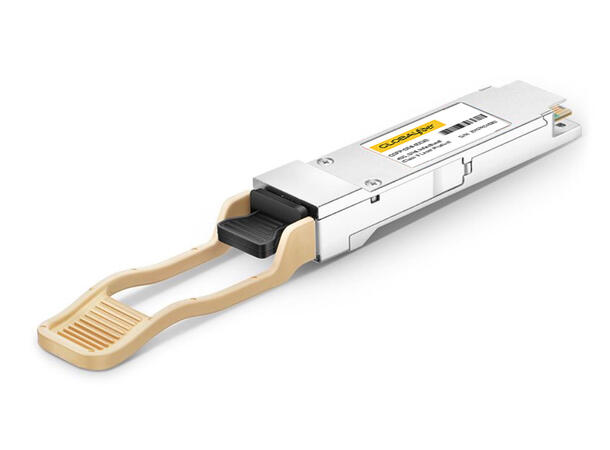

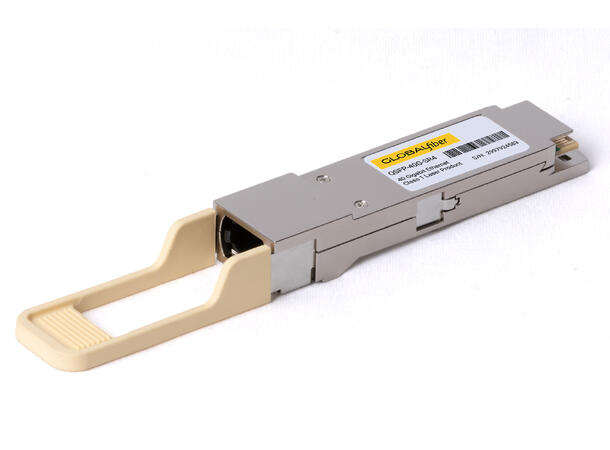

NVIDIA/Mellanox MC2210411-SR4E Compatible 40GBASE-SR4 QSFP+ 850nm 150m DOM MPO-12/UPC MMF InfiniBand FDR10 Optical Transceiver Module for Switch-IB 2 Switches and ConnectX-5 HCA.
Key Features
4 independent full-duplex channels
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
MTP/MPO optical connector
QSFP MSA compliant
Digital diagnostic capabilities
Max Cable Distance: 150m@OM4/100m@OM3
CML compatible electrical I/O
Single +3.3V power supply operating
Power Consumption: =1.5W
TX input and RX output CDR retiming
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant
TX Power: -7.6~2.4dBm
Receiver Sensitivity: <-9.5dBm
Powerbudget: 1.9dB
Application
Rack to rack
Data centers
Metro networks
Switches and Routers
Infiniband 4x SDR, DDR, QDR
