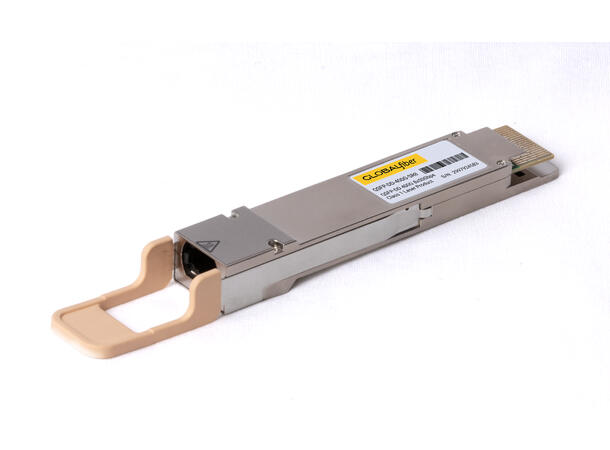

Key Features
Hot pluggable QSFP-DD form factor
Supports 400Gb/s aggregate bit rate
Protocols: IEEE 802.3cd, QSFP-DD MSA, CMIS 4.0
Up to 53.125Gbps data rate per channel
Connector: MTP/MPO-16 (APC)
Maximum link length of 70m on OM3 and 100m on OM4
Power dissipation: <10W
PAM4 Modulation
Commercial: 0°C to +70°C
Voltage: 3.3V
Power Consumption: =10W
TX Power: -6.5~+4.0dBm
Receiver Sensitivity: < -7.9dBm
Powerbudget: 1.9dB
Application
400GBASE-SR8 400G Ethernet
Data Center
