Key Features

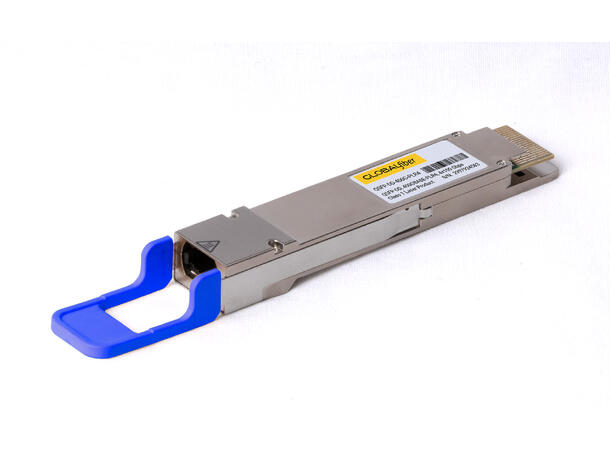

Hot-pluggable QSFP-DD form factor full-duplex transceiver module
4-channel 1310nm EML transmitter and PIN photo-detector array
Data rate up to 106.25Gbps (53.125GBd PAM4) per channel
Retimed 400GAUI-8 electrical interface
Compliant with QSFP-DD MSA, CMIS 4.0 and IEEE 802.3cu 100GBASE-LR1
Reach up to 10km over G.652 SMF with KP4-FEC
MPO12/APC receptacle
Power Consumption: = 10W
Case operating temperature range:  0 to 70°C
Single 3.3V power supply
Built-in digital diagnostic functionality
RoHS compliant
TX Power: -1.5~+4.5dBm
Receiver Sensitivity: < -7.5 to 4.5dBm
Powerbudget: 6dB


Application
4x100G Ethernet IEEE 802.3cu 100GBASE-LR1
Data Center Intraconnection
