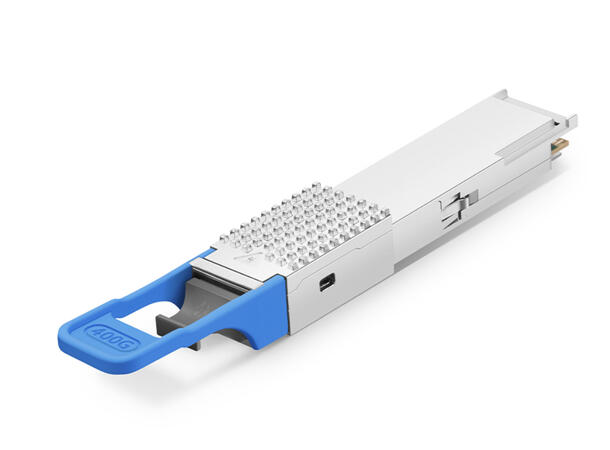

400GBASE-LR4 QSFP112 Optical Transceiver Module (SMF, 1310nm, 10km, Duplex LC, DOM)

The 400GBASE-LR4 module, Duplex LC connector, up to 10km over parallel single-mode fiber. It is compliant with QSFP112 MSA, CMIS 5.2 Interface and 400GAUI-4 standards.
The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 400G ethernet and data center interconnect applications.

Specifications:

Form Factor: QSFP112
Max Data Rate: 425Gbps (4x106.25Gb/s)
Wavelength: 1310nm
Max Cable Distance¨: 10km
Connector: Duplex LC UPC
Media: SMF
Transmitter Type: EML
Receiver Type: PD
TX Power: -2.7~5.1dBm
Minimum Receiver Power: -6.8dBm
Power Budget: 9dBm
Receiver Overload: 4.4dBm
Max Power Consumption: 10W
Extinction Ratio: >3.5dB
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C
Modulation (Electrical): 4x100G-PAM4
Modulation (Optical): 4x100G-PAM4
CDR: TX and RX
Inbuilt FEC: No
Core Size: 9µm
Protocols: IEEE 802.3cu, OIF-CEI-112G-VSR-PAM4, CMIS Rev 5.2, QSFP-112 MSA
Warranty: 5 Years

Application
4 x 100G-LR4 applications
Data center
