QSFP112 400G-DR4 4x100Gbps PAM4

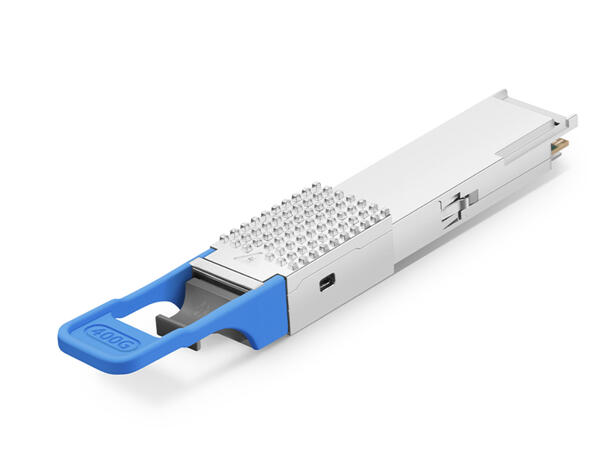

400GBASE-DR4 QSFP112 PAM4 Optical Transceiver Module (SMF, 1310nm, 500m, MTP/MPO, DOM)

The 400GBASE-DR4 module, MTP/MPO-12 connector, up to 500m over parallel single-mode fiber. It is compliant with QSFP112 MSA, CMIS 5.0 Interface and 400GAUI-4 standards.
The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It is suitable for 400G ethernet and data center interconnect applications.


Specifications

• Form Factor: QSFP112
• Max Data Rate: 425Gbps (4x106.25Gb/s)
• Wavelength: 1310nm
• Max Cable Distance: 500m

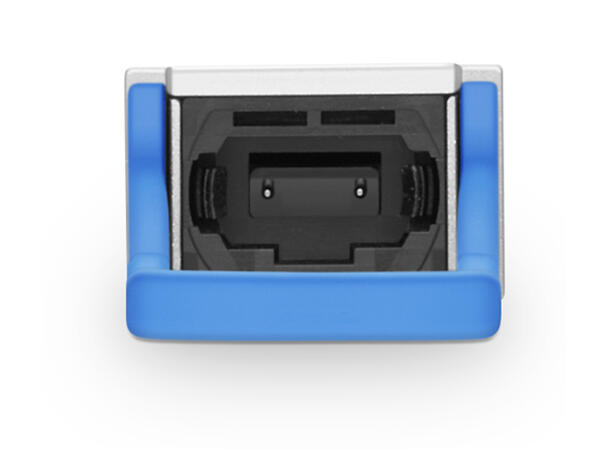

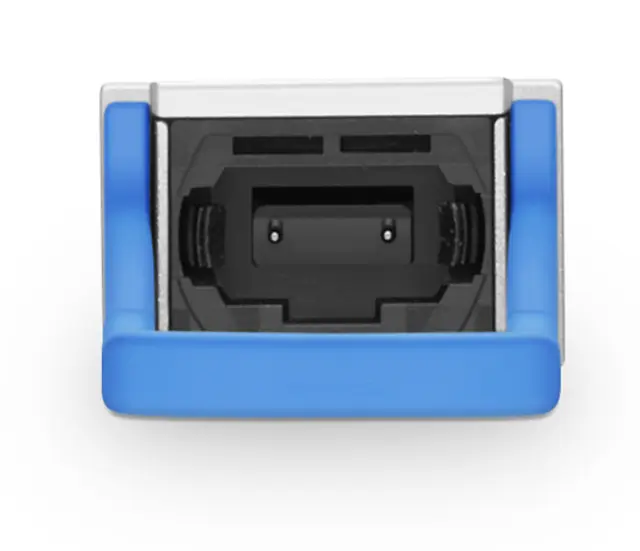

• Connector: MPO-12/APC
• Media: SMF
• Transmitter Type: EML
• Receiver Type: PIN
• TX Power: -2.9~4.0dBm
• Minimum Receiver Power: -5.9dBm
• Power Budget: 3dB
• Receiver Overload: 4.0dBm
• Max Power Consumption: 10W
• Extinction Ratio: >3.5dB
• DDM/DOM: Supported
• Commercial Temperature Range: 0 to 70°C
• Modulation (Electrical): 4x100G-PAM4
• Modulation (Optical): 4x100G-PAM4
• CDR (Clock and Data Recovery): TX and RX
• Inbuilt FEC: No
• Core Size: G.652/9um
• Protocols: IEEE Std 802.3ck, QSFP112 MSA, CMIS 5.0
• Warranty: 5 Years

Application
4x100G-DR applications
Data center
Infiniband Interconnects
