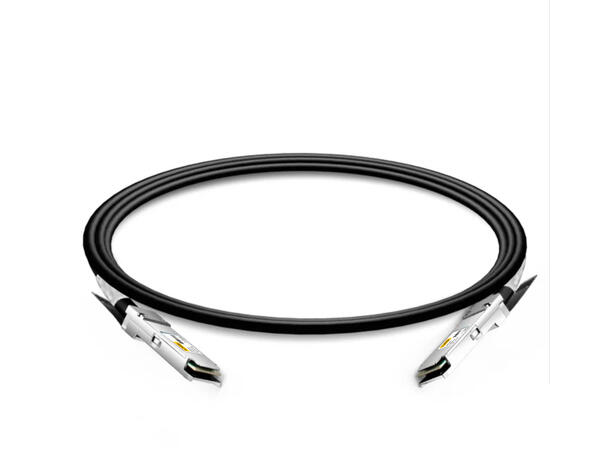

The 200G QSFP56 Direct Attach Copper (DAC) Cable is a high-performance, cost-efficient solution for short-reach 200G Ethernet and HDR interconnects. Designed for modern data centers, cloud platforms, AI/ML clusters, and high-density switching environments, this passive copper cable eliminates the need for optical modules while providing exceptional signal integrity and ultra-low latency.
Each cable is built with 8 high-speed copper pairs, supporting 4×53Gb/s PAM4 lanes, and features fully QSFP56 MSA-compliant connectors. An integrated EEPROM in each QSFP56 housing provides host-readable product data for seamless system integration.
Key Features
• Hot-pluggable QSFP56 form factor
• Supports up to 212.5Gbps aggregate bandwidth
• 4× 53Gb/s PAM4 electrical modulation
• Fully QSFP56 MSA compliant
• Operating temperature: 0°C to +70°C
• Copper twinax lengths up to 3 meters
• Single 3.3V low-power operation
• BER better than 1E-15
• LSZH jacket, environmentally safe
• Lead-free / halogen-free PCB
• SFF-8636 compliant
• I²C management interface
• RoHS compliant
Applications
• 200G Ethernet switch and server interconnects
• InfiniBand HDR connectivity in HPC and AI systems
• High-density data-center architectures
• Short-reach copper links in ToR and EoR designs
• Low-latency GPU/CPU cluster interconnections
