The NVIDIA/Mellanox MFS1S00-V0xxx Compatible Active Optical Cable (AOC) delivers 200Gb/s InfiniBand HDR connectivity, featuring a QSFP56 to QSFP56 interface. Built on the Quad Small Form-Factor Pluggable 56 (QSFP56) standard, it integrates four parallel lanes running at 50Gb/s each, ensuring high-speed and low-latency data transmission.
This AOC is fully compliant with QSFP56 MSA and IEEE 802.3 standards, making it ideal for high-performance computing (HPC), AI workloads, cloud infrastructure, and InfiniBand HDR networks.

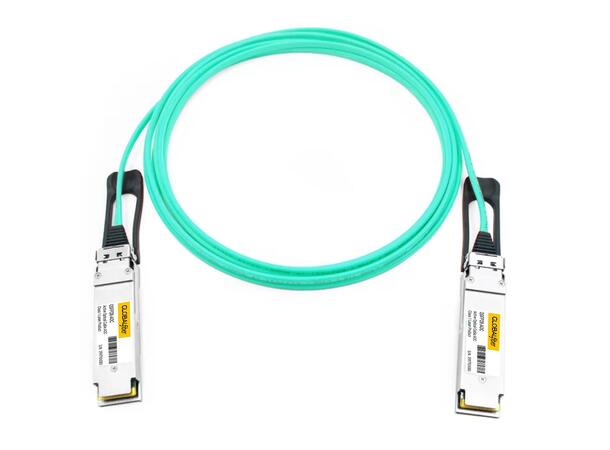

NVIDIA/Mellanox MFS1S00-V010E Compatible 200G QSFP56 InfiniBand HDR Active Optical Cable for Quantum Switches and ConnectX-6 HCA
Product Highlights – NVIDIA/Mellanox Compatible AOC Cable (MFS1S00-V0xxx)
• Compatibility: NVIDIA/Mellanox InfiniBand HDR systems
• Model: MFS1S00-V0xxx
• Connector Type: QSFP56 to QSFP56
• Maximum Data Rate: 200Gbps (4x50Gbps with PAM4 modulation)
• Cable Length: 10 meters (33 feet)
• Cable Type: Active Optical Cable, OM3 multimode fiber
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Minimum Bend Radius: 30mm
• Wavelength: 850nm
• Transmitter Type: VCSEL (Vertical-Cavity Surface-Emitting Laser)
• Receiver Type: PIN photodiode
• Modulation Format: PAM4
• Power Supply: 3.3V
• Power Consumption: =4.5W
• Digital Diagnostics (DDM/DOM): Supported
• CDR (Clock and Data Recovery): TX & RX built-in CDR
• Protocols Supported: IEEE 802.3, QSFP56 MSA, SFF-8665, SFF-8636, InfiniBand HDR
• Operating Temperature Range: 0°C to 70°C
• Warranty: 5 years
