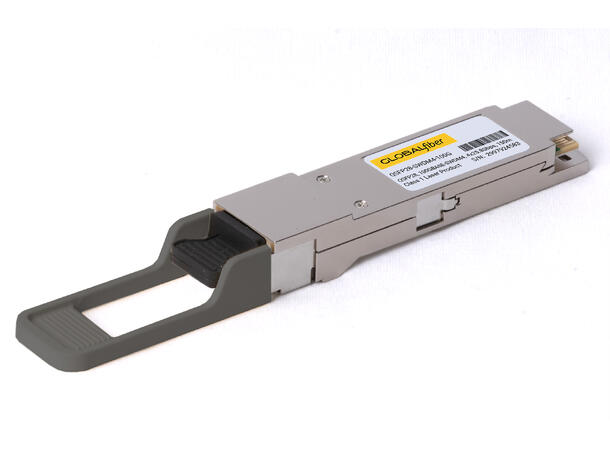

GLOBALfiber Q100G-SWDM4 is a 100G SWDM4 QSFP28 transceiver for duplex multimode fiber, reaching up to 150 m on OM5. Four shortwave wavelength channels share the LC interface, with shorter supported distances on OM3 and OM4 fiber.
Available coding and compatibility
Available coding: Alcatel, Check Point, NVIDIA(ETH), Arista, Ciena, Cisco, Dell, Extreme, Fortinet, Generic, H3C, Huawei, Infinera, Intel, Juniper, Nokia Networks. Provide the equipment model, port configuration and software version so support can be checked. Coding options do not confirm compatibility with every model or protocol. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification | Details |
|---|
| Product number | Q100G-SWDM4 |
|---|
| Form factor | QSFP28 |
|---|
| Capacity | 100G |
|---|
| Applications | 100G Ethernet over duplex multimode fiber |
|---|
| Reach and fiber | Up to 75 m on OM3, 100 m on OM4 or 150 m on OM5 multimode fiber |
|---|
| Nominal wavelength | 850, 880, 910 and 940 nm |
|---|
| Optical connectors | Duplex LC |
|---|
| Diagnostics | Digital optical monitoring (DOM/DDM) |
|---|
Installation requirements
Select the fiber grade for the required distance and check the complete link loss. Confirm matching SWDM4 optics and host port settings at both ends.
