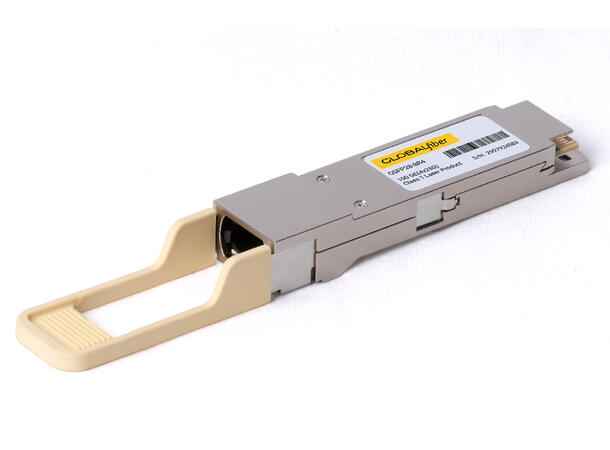

100GBASE-SR4 QSFP28 Optical Transceiver Module – 100m, MMF, 850nm, MTP/MPO, DOM
The QSFP-100G-SR4 compatible QSFP28 transceiver is a high-performance optical module designed for 100 Gigabit Ethernet (100GBASE-SR4) applications over OM4 multimode fiber (MMF). It supports transmission distances up to 100 meters using an 850nm wavelength and an MTP/MPO-12 connector, making it ideal for short-reach, high-density data center environments.
This 100G optical transceiver complies with the IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standards, ensuring reliable interoperability across networking platforms. It also includes Digital Optical Monitoring (DOM) via I²C, as specified by the QSFP28 MSA, providing access to real-time operating parameters such as temperature, voltage, and optical power.
Key Features
Hot-pluggable QSFP28 form factor
Supports 103.1Gb/s to 112.2Gb/s aggregate bit rates
Power dissipation < 3.5W
RoHS-6 compliant
Commercial case temperature range of 0°C to 70°C
Single 3.3V power supply
Maximum link length of 100m on OM4 Multimode Fiber (MMF)
4x25Gb/s 850mm VCSEL-based transmitter
4x25G electrical interface
MPO12 receptacle I2C management interface
TX Power: -8.4~+2.4dBm
Receiver Sensitivity: < -10.3dBm
Powerbudget: 2dB
Application
100GBASE-SR4 100G Ethernet
128G Fiber Channel
4x28Gb/s Multimode OTN
