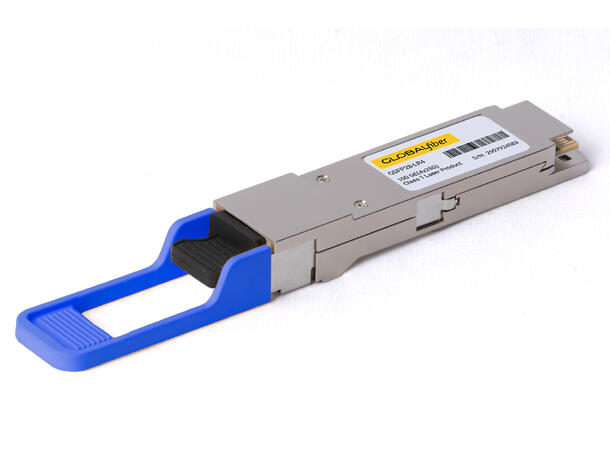

GLOBALfiber Q100G-LR4I is an industrial-temperature 100GBASE-LR4 QSFP28 transceiver for single-mode links up to 10 km. Four LAN-WDM optical channels combine in a duplex LC interface for 100G Ethernet connections.
Available coding and compatibility
Available coding: Check Point, NVIDIA(ETH), Arista, Ciena, Cisco, Dell, Ericsson, Extreme, Fortinet, Generic, Huawei, Infinera, Intel, Juniper, Nokia Networks. Provide the equipment model, port configuration and software version so support can be checked. Coding options do not confirm compatibility with every model or protocol. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification |
Details |
| Product number |
Q100G-LR4I |
| Form factor |
QSFP28 |
| Capacity |
100G |
| Applications |
100GBASE-LR4 Ethernet |
| Power dissipation |
<4 W |
| Reach and fiber |
Up to 10 km over single-mode fiber |
| Nominal wavelength |
1295.56, 1300.05, 1304.58 and 1309.14 nm |
| Optical connectors |
Duplex LC |
| Diagnostics |
Digital optical monitoring (DOM/DDM) |
| Operating case temperature |
−40°C to +70°C |
Installation requirements
Confirm that the host supports the intended Ethernet mode and cooling requirements. Check the optical link budget and received power before installation.
