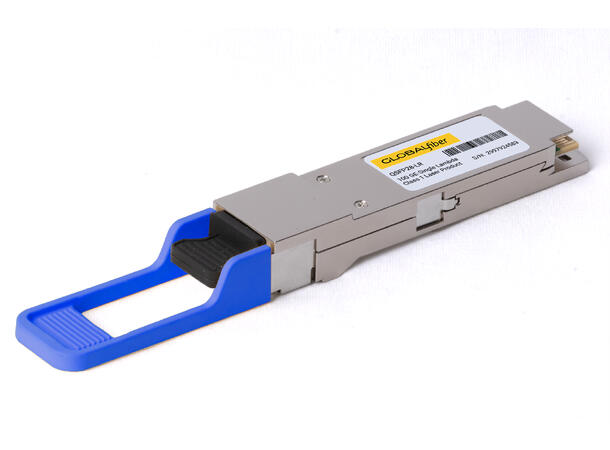

GLOBALfiber Q100G-LR is a single-lambda 100G QSFP28 optical transceiver for data centre interconnects and enterprise Ethernet networks. It combines a four-lane NRZ electrical host interface with one PAM4 optical channel and duplex LC single-mode connectivity.
Available coding and compatibility
Available coding: Alcatel, Check Point, NVIDIA(ETH), Arista, Ciena, Cisco, Dell, Extreme, Fortinet, Generic, H3C, Huawei, Infinera, Intel, Juniper, Nokia Networks. Provide the equipment model, port configuration and software version so support can be checked. Coding options do not confirm compatibility with every model. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification |
Details |
| Product number |
Q100G-LR |
| Form factor |
QSFP28 |
| Capacity |
100G |
| Applications |
100G Ethernet; data centre interconnects; enterprise networking |
| Power dissipation |
4.5 W maximum |
| Fiber |
Single-mode fiber |
| Nominal wavelength |
1310 nm |
| Optical connectors |
Duplex LC |
| Diagnostics |
Digital optical monitoring (DOM/DDM) |
Installation requirements
Confirm the required route length, FEC configuration and optical link budget before ordering. Match the host port settings and remote optical interface.
