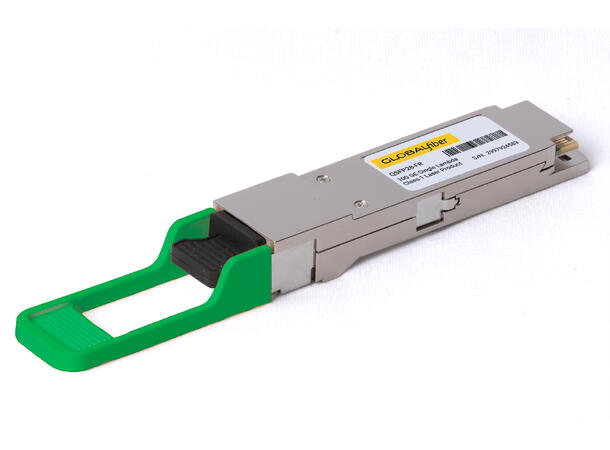

GLOBALfiber Q100G-FR is a single-lambda 100G QSFP28 FR transceiver for single-mode links up to 2 km with FEC. A DSP gearbox combines the four-lane NRZ host interface into one PAM4 optical channel for data centre interconnects and enterprise networks.
Available coding and compatibility
Available coding: Alcatel, Check Point, NVIDIA(ETH), Arista, Ciena, Cisco, Dell, Extreme, Fortinet, Generic, H3C, Huawei, Infinera, Intel, Juniper, Nokia Networks. Provide the equipment model, port configuration and software version so support can be checked. Coding options do not confirm compatibility with every model. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification |
Details |
| Product number |
Q100G-FR |
| Form factor |
QSFP28 |
| Capacity |
100G |
| Applications |
100G Ethernet; data centre interconnects; enterprise networking |
| Power dissipation |
4.5 W maximum |
| Reach and fiber |
2 m–2 km over single-mode fiber, with FEC |
| Nominal wavelength |
1310 nm |
| Optical connectors |
Duplex LC |
| Diagnostics |
Digital optical monitoring (DOM/DDM) |
Installation requirements
Confirm the FEC configuration and matching remote optics for the intended link. Check host cooling and the complete optical link budget before installation.
