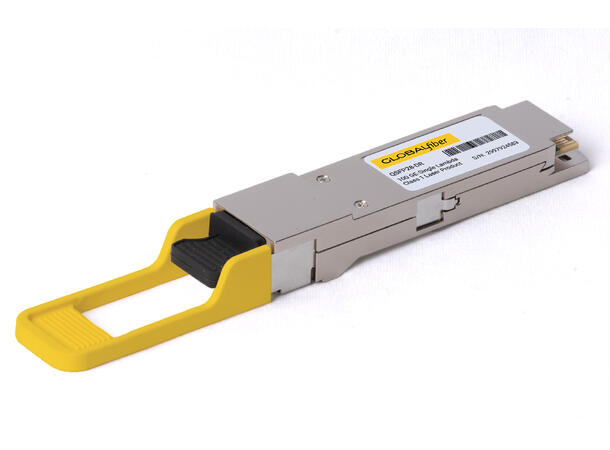

GLOBALfiber Q100G-DR is a single-lambda 100GBASE-DR QSFP28 transceiver for single-mode links up to 500 m with FEC. Its DSP converts four 25G NRZ electrical lanes into one PAM4 optical channel for short data centre and enterprise connections.
Available coding and compatibility
Available coding: Alcatel, Check Point, NVIDIA(ETH), SuperMicro, Ubiquiti, Arista, Ciena, Cisco, Dell, Extreme, Fortinet, Generic, H3C, Huawei, Infinera, Intel, Juniper, Nokia Networks. Provide the equipment model, port configuration and software version so support can be checked. Coding options do not confirm compatibility with every model. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification |
Details |
| Product number |
Q100G-DR |
| Form factor |
QSFP28 |
| Capacity |
100G |
| Applications |
100G Ethernet; data centre interconnects; enterprise networking |
| Reach and fiber |
Up to 500 m over single-mode fiber, with FEC |
| Nominal wavelength |
1310 nm |
| Optical connectors |
Duplex LC |
| Diagnostics |
Digital optical monitoring (DOM/DDM) |
Installation requirements
Confirm the FEC configuration and matching remote optics for the intended link. Check host cooling and the complete optical link budget before installation.
