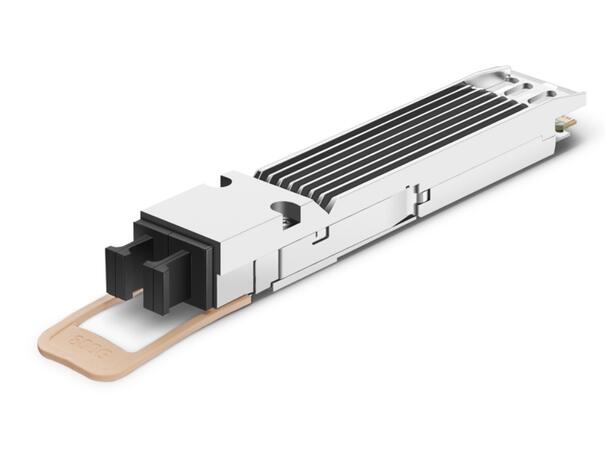

800GBASE-VR8 OSFP PAM4 Optical Transceiver
MMF | 850 nm | up to 50 m | Dual MPO-12 APC | Finned Top
The 800GBASE-VR8 OSFP optical transceiver module is engineered for 800 GbE Ethernet transmission over OM4 multimode fiber (MMF) with link lengths of up to 50 meters. Operating at 850 nm and using dual MTP/MPO-12 APC connectors, the module delivers high-density, low-latency connectivity for modern data center architectures.
The transceiver is fully compliant with IEEE 802.3ck, OSFP MSA, and CMIS 5.0 standards. Integrated Digital Diagnostics Monitoring (DDM/DOM) provides real-time visibility into key operating parameters such as optical power, temperature, and voltage.
Designed in a twin-port OSFP finned-top form factor, this module is optimized for air-cooled Ethernet switches. With low power consumption, high reliability, and deterministic performance, it supports spine–leaf switch-to-switch links, top-of-rack connections, and connectivity to network adapters or BlueField-3 DPUs in compute and storage systems. It is an ideal optical solution for HPC, AI, and cloud data center environments.
Key Features
• 800GBASE-VR8 Ethernet optical transceiver
• OSFP twin-port finned-top form factor
• Dual MPO-12 APC connectors
• Low latency and low power consumption
• Designed for air-cooled switch platforms
• Integrated DDM/DOM for real-time monitoring
• High reliability for mission-critical workloads
Technical Specifications
General
• Form Factor: Twin-port OSFP, finned top
• Application: 800G Ethernet
• Warranty: 5 years
Performance
• Maximum Data Rate: 850 Gbps (8 × 106.25 Gbps)
• Modulation (Electrical): 8 × 100G PAM4
• Modulation (Optical): Dual 4 × 100G PAM4
• Wavelength: 850 nm
• Maximum Reach:
o 30 m over OM3
o 50 m over OM4
Optical Interface

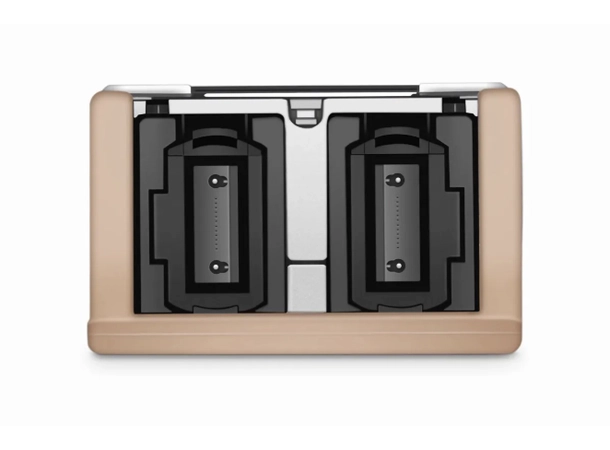

• Connector: Dual MTP/MPO-12 APC
• Fiber Type: Multimode fiber (MMF)
• Transmitter Type: VCSEL
• Receiver Type: PIN
Optical Characteristics
• TX Output Power: –4.6 to +4 dBm
• Minimum Receiver Sensitivity: –6.4 dBm
• Receiver Overload: +4 dBm
• Optical Power Budget: 1.8 dB
• Extinction Ratio: > 2.5 dB
Electrical & Management
• Maximum Power Consumption: 16 W
• DDM / DOM: Supported
• CDR: Built-in TX and RX CDR
• Forward Error Correction (FEC): Not inbuilt
Environmental
• Operating Temperature: 0 °C to +70 °C
Standards & Protocols
• Standards Compliance:
o OSFP MSA
o CMIS 5.0
o IEEE 802.3db
o IEEE 802.3ck
