Introduction

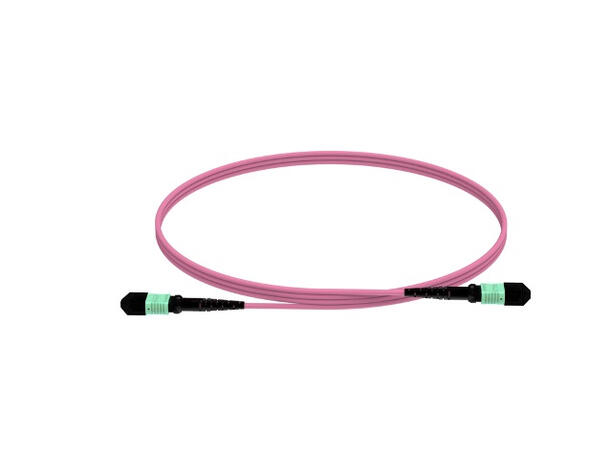

MTP/MPO optical cable jumper is used for 40g/100g/200g/400g data center wiring. GLOBALfiber
provides customized MTP/MPO jumpers that are 100% tested for optimum performance and reliability.

Product Features
• Available polarity: Type A, Type B
• Ultra low insertion loss
• Number of available fiber cores: 8, 12, 24
• MTP/MPO connector type: male, female, male and female
• Available fiber types: SM(G652D, G657A1, G657A2), MM(OM3/150, OM3/300, OM4, OM5)
• Available cable jacket types: PVC, Riser(OFNR), Plenum(OFNP), LSZH
• Multi-fiber connector type: MTP, MPO, APC or UPC polishing type
• Cable length: 1 to 999 meters
• Improve and simplify fiber routing and reduce fiber management space


General Technical Specifications

• Optical Fiber Mode
- SM (Standard)
- SM (Elite / Low)
- MM (Standard)
- MM (Elite / Low)
• Insertion Loss (Typical)
- 0.35 dB (SM Standard / MM Standard)
- 0.20 dB (SM Elite / MM Elite)
• Insertion Loss (Maximum)
- 0.75 dB (SM Standard)
- 0.35 dB (SM Elite)
- 0.60 dB (MM Standard)
- 0.35 dB (MM Elite)
• Return Loss
- = 60 dB for APC (8° Angle Polish)
- = 50 dB for UPC
- = 20 dB for UPC Standard
• Connector Gender
- Male: With Pins
- Female: Without Pins
• Tensile Strength
- = 0.3 dB (Max. 66N)
• Vibration
- = 0.3 dB (10 ~ 55 Hz)
• Temperature Cycle
- = 0.3 dB (-40 °C to +75 °C, 21 Cycles)
