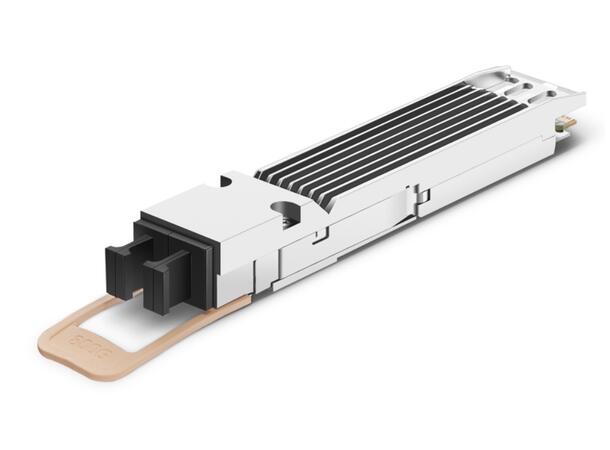

GLOBALfiber OSFP-800G-F-SR8 is a finned top 800G OSFP SR8 optical transceiver for multimode data centre and HPC connections. It reaches up to 30 m on OM3 or 50 m on OM4 fiber through two MTP/MPO-12/APC ports.
Available coding and compatibility
Available coding: Arista, Generic, NVIDIA(ETH). Provide the equipment model, port configuration and software version so support can be checked. Listed coding does not confirm compatibility with every model. For other coding requirements, contact salg@globalfiber.no.
Key specifications
| Specification | Details |
|---|
| Product number | OSFP-800G-F-SR8 |
|---|
| Form factor | OSFP, finned top |
|---|
| Capacity | 800G |
|---|
| Applications | 800G Ethernet |
|---|
| Power dissipation | 16 W maximum |
|---|
| Reach and fiber | 0.5–30 m over OM3 / 0.5–50 m over OM4 multimode fiber |
|---|
| Nominal wavelength | 850 nm |
|---|
| Optical connectors | Dual MTP/MPO-12/APC |
|---|
| Diagnostics | Digital optical monitoring (DOM/DDM) |
|---|
Installation requirements
Confirm the host cooling and power budget, fiber connections and port configuration before installation. Check the host FEC settings and support for the intended breakout mode.
