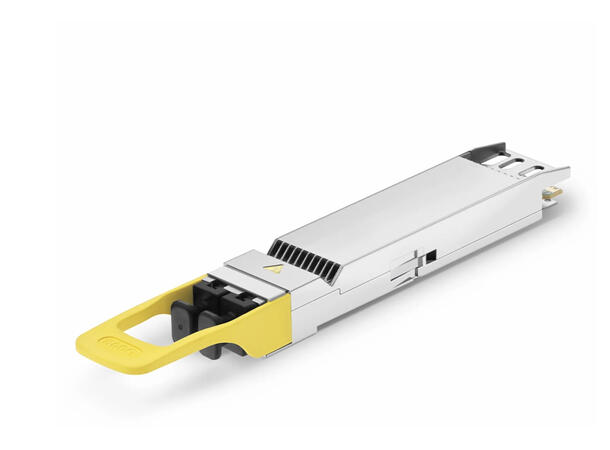

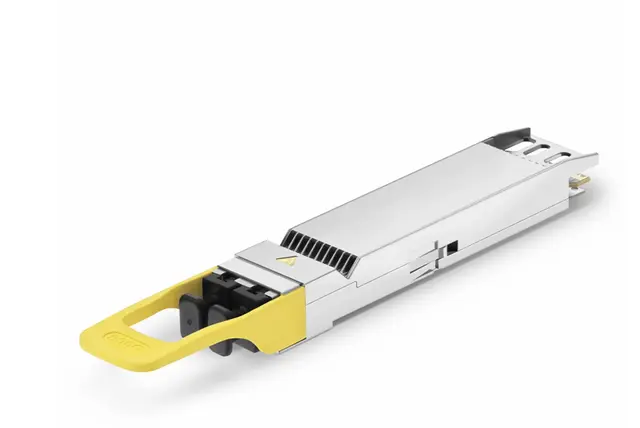

800GBASE-DR8 OSFP PAM4 Optical Transceiver
(SMF, 1310 nm, 500 m, Dual MPO-12 APC, DOM, Closed Finned Top)
The 800GBASE-DR8 OSFP optical transceiver module is engineered to deliver 800 Gigabit Ethernet throughput over distances of up to 500 meters on OS2 single-mode fiber (SMF) using a 1310 nm wavelength. The module employs dual MTP/MPO-12 APC connectors and a parallel DR8 optical architecture based on PAM4 modulation.
Compliant with OSFP MSA, CMIS Rev 5.0, and IEEE 802.3cu / IEEE 802.3ck standards, this transceiver ensures interoperability across modern 800G Ethernet platforms. Integrated Digital Optical Monitoring (DOM/DDM) enables real-time monitoring of critical operating parameters.
The twin-port OSFP Closed Finned Top design is optimized for air-cooled Ethernet switches and high-density systems. It supports flexible deployment in spine–leaf architectures, switch-to-switch interconnects, top-of-rack (ToR) to network adapter links, and connections to BlueField-3 DPUs in compute and storage servers. This makes the module particularly well suited for HPC, AI workloads, and hyperscale cloud data centers.
Closed Finned Top Design – Explained
The Closed Finned Top design features a finned heatsink enclosed by a protective top cover, forming a closed airflow channel. This structure provides:
• Enhanced thermal efficiency in forced-air cooling environments
• Mechanical protection of the cooling fins
• Compatibility with both air-cooled and liquid-cooled platforms
• Improved reliability in high-density 800G systems
Technical Specifications
• Form Factor: Twin-port OSFP (Closed Finned Top)
• Maximum Data Rate: 850 Gbps (8 × 106.25 Gbps)
• Modulation Format: PAM4
• Modulation (Electrical): 8 × 100G PAM4
• Modulation (Optical): Dual 4 × 100G PAM4 (DR8)
• Wavelength: 1310 nm
• Maximum Transmission Distance: 500 m
• Fiber Type: OS2 Single-Mode Fiber (SMF)

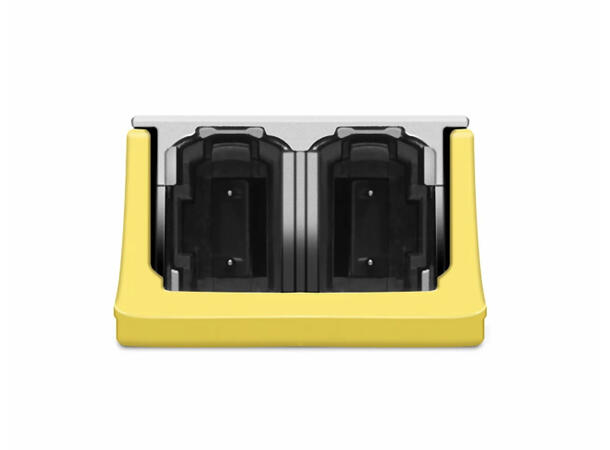

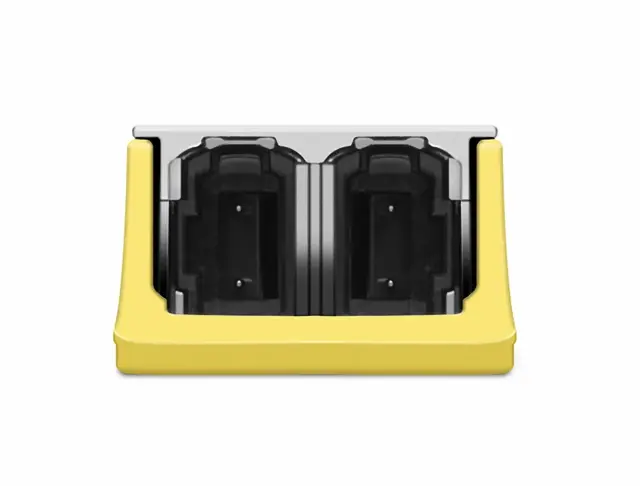

• Connector Type: Dual MTP/MPO-12 APC
Optical Performance
• Transmitter Type: EML
• Receiver Type: PIN
• Transmit Power (Tx): –2.9 to +4.0 dBm
• Minimum Receiver Sensitivity (Rx): –5.9 dBm
• Receiver Overload: +4.0 dBm
• Optical Power Budget: 3 dB
• Extinction Ratio: > 3.5 dB
Electrical & Functional Features
• Maximum Power Consumption: = 16.5 W
• CDR / DSP: Integrated TX & RX DSP (Clock and Data Recovery)
• Digital Diagnostics (DOM/DDM): Supported
• Inbuilt FEC: No
• Packaging Technology: COB (Chip-on-Board)
Standards & Compliance
• OSFP MSA Hardware: Rev 4.1
• CMIS: Rev 5.0
• IEEE 802.3cu-2021
• IEEE P802.3ck D2.2
Applications
• 800G Ethernet
• Spine–leaf and switch-to-switch interconnects
• Top-of-rack (ToR) to server / NIC connectivity
• HPC clusters and AI fabrics
• Cloud and hyperscale data centers
Warranty
• Warranty: 5 Years
