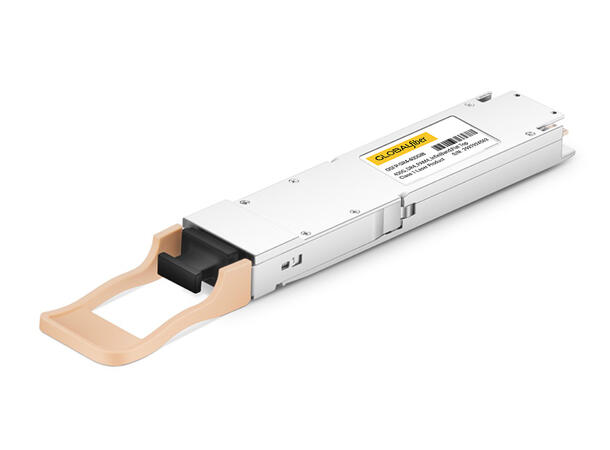

NVIDIA/Mellanox MMA4Z00-NS400 Compatible 400G OSFP SR4 Optical Transceiver – 50m, MMF, 850nm, MPO-12/APC, DOM, Flat Top
The MMA4Z00-NS400 compatible OSFP transceiver is a high-performance 400G optical module designed for InfiniBand NDR (Next Data Rate) systems. Featuring a Flat-Top (OSFP-RHS) form factor and a parallel SR4 multimode interface, it uses 100G PAM4 modulation across four channels to deliver a total throughput of 400Gbps.
This transceiver supports up to 50 meters over OM4 multimode fiber using an MPO-12/APC connector, making it ideal for short-reach, high-density data center interconnects. Fully qualified for end-to-end InfiniBand NDR deployments, it ensures low latency and high bandwidth in demanding compute environments.
The module includes Digital Optical Monitoring (DOM) via I²C interface, providing real-time diagnostics and reliability monitoring. Common use cases include ConnectX-7 adapters, NVIDIA OSFP platforms, and 2x400G twin-port InfiniBand switches in supercomputing and AI infrastructure.
Technical Specifications – NVIDIA/Mellanox MMA4Z00-NS400 Compatible 400G OSFP SR4 Transceiver
• Compatibility: NVIDIA/Mellanox InfiniBand NDR
• Model: MMA4Z00-NS400
• Form Factor: Single-port OSFP, Flat Top (OSFP-RHS)
• Maximum Data Rate: 425Gbps (4 × 106.25Gbps)
• Wavelength: 850nm
• Maximum Cable Distance:
o 30?m over OM3
o 50?m over OM4 / OM5
• Connector: MPO-12/APC
• Fiber Type (Media): Multimode Fiber (MMF)
• Core Size: 50/125µm
Optical & Electrical Performance
• Transmitter Type: VCSEL (Vertical-Cavity Surface-Emitting Laser)
• Receiver Type: PIN photodiode
• Transmit Power (TX): -4.6 to 4.0dBm
• Minimum Receiver Power: -6.3dBm
• Receiver Overload: 4.0dBm
• Power Budget: 1.7dB
• Extinction Ratio: 2.5dB
• Maximum Power Consumption: = 8.5W
• Operating Temperature Range: 0°C to 70°C
Functional Features
• Electrical Modulation: 4 × 100G-PAM4
• Optical Modulation: 4 × 100G-PAM4
• CDR (Clock and Data Recovery): Integrated on both TX and RX
• FEC (Forward Error Correction): Inbuilt
• Digital Diagnostics (DOM/DDM): Supported
• Packaging Technology: Chip-on-Board (COB)
Compliance & Standards
• Protocols Supported:
o 400G InfiniBand NDR
o OSFP MSA Rev. 5.0
o IEEE 802.3ck
