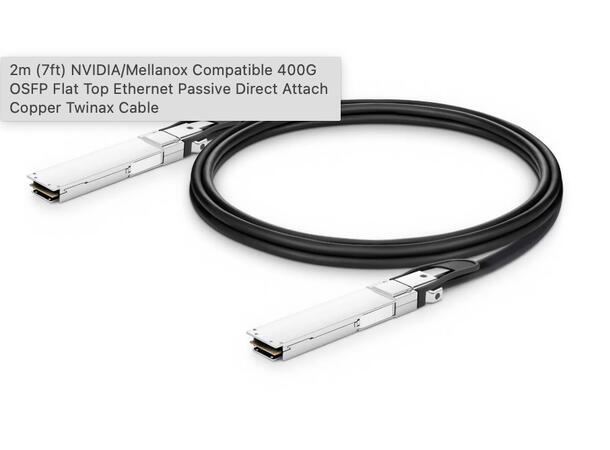

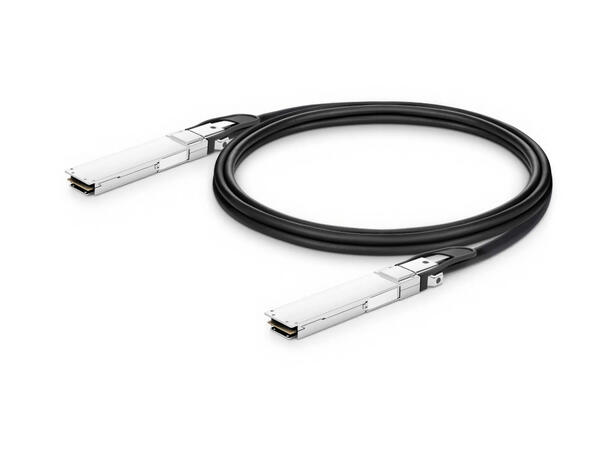

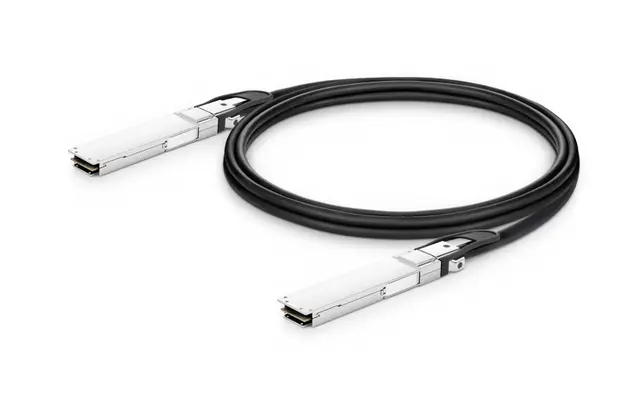

400G OSFP Flat Top Passive DAC Twinax Cable – (OSFP to OSFP)
The 400G OSFP Flat Top (OSFP-RHS) Passive Direct Attach Copper (DAC) Twinax cable delivers reliable 400G Ethernet connectivity for ultra-short data center links. Designed for OSFP Flat Top ports, it enables cost-effective, high-bandwidth interconnections between 400G OSFP switch or router ports within the same rack or across adjacent racks.
This passive copper DAC is engineered with ultra-low-loss materials and features an 8-wire twisted pair construction with square-ring contacts and reinforced shell extension design. The result is superior mechanical durability, optimized bend performance, and stable high-speed signal transmission. Each cable is validated in live switching environments to ensure consistent signal integrity and dependable end-to-end performance.
.
Key Features
• Supports 400G Ethernet connectivity
• OSFP (Flat Top / OSFP-RHS) to OSFP (Flat Top)
• Passive Twinax copper cable
• Optimized for ultra-short intra-rack and inter-rack links
• Ultra-low-loss construction for improved signal integrity
• Enhanced mechanical stability and bend performance
• Low power consumption (=0.1W)
• Designed for high-density data center environments
Technical Specifications
• Form Factor: OSFP (Flat Top) to OSFP (Flat Top)
• Maximum Data Rate: 400Gbps
• Media Type: Copper
• Cable Type: Passive Twinax DAC
• Wire Gauge: 28AWG
• Modulation Format: PAM4
• Power Consumption: 0.1W
• Minimum Bend Radius: 40.5 mm
• Jacket Material: PVC (OFNR)
• Operating Temperature: 0 to 70°C
• Standards & Protocols: OSFP MSA, CMIS Rev 4.0, IEEE 802.3cd
• Warranty: 5 years
