Industrial GPON SFP ONU | Class C | 20 km | SC/APC | DOM

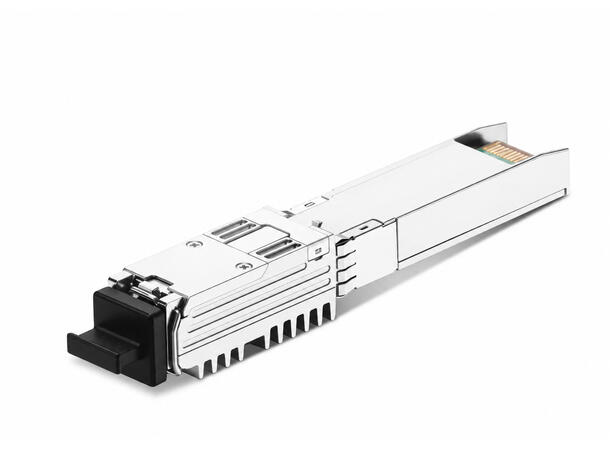

The GLOBALfiber GPON ONU Stick is a compact, high-performance GPON Optical Network Unit (ONU) integrated into a standard SFP form factor. It eliminates the need for an external ONT by providing a complete GPON client solution directly inside an SFP module.

Designed for seamless deployment for compatible networking platforms, the module integrates the GPON MAC, OMCI management, embedded web interface, and Ethernet bridge functionality, delivering a simple, reliable, and cost-effective Fiber-to-the-Premises (FTTx) solution.

The ONU Stick supports 2.488 Gbps downstream and 1.244 Gbps upstream transmission over a single single-mode fiber using 1310 nm TX / 1490 nm RX, with an optical reach of up to 20 km (Class B+).

Key Features

• Complete GPON ONU integrated into a standard SFP module
• Compatible EEPROM coding
• Eliminates the need for an external GPON ONT
• Built-in GPON MAC and OMCI management
• Integrated Web GUI, SSH and Telnet management
• Supports GPON authentication via Serial Number (SN), LOID and Password
• Configurable MAC address
• Supports DOM/DDM digital diagnostics
• Industrial operating temperature (-40°C to +85°C)
• Low power consumption
• Simple plug-and-play installation
• Ideal for FTTx, enterprise networks, wireless backhaul and Ethernet switching applications

Technical Specifications:

• Form Factor: SFP
• Technology: GPON ONU Stick
• Compatibility: Ubiquiti Compatible
• Fiber Type: Single Mode Fiber (SMF)

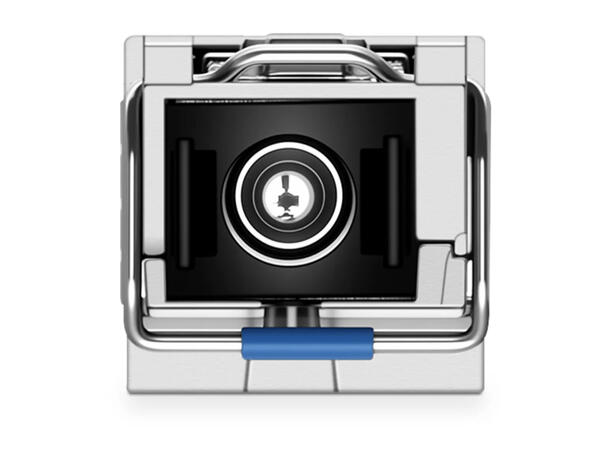

• Connector: SC/APC
• Maximum Distance: 20 km
• Optical Class: C

Optical Specifications:

• Transmit Wavelength: 1310 nm
• Receive Wavelength: 1490 nm
• Upstream Data Rate: 1.244 Gbps
• Downstream Data Rate: 2.488 Gbps
• Transmit Optical Power: +0.5 to +5 dBm
• Receiver Sensitivity: -28 to -8 dBm
• Maximum Link Budget: 28 dB
• Extinction Ratio: =10 dB

Management:

• Built-in Web Interface (Web GUI)
• SSH Management
• Telnet Management
• OMCI Management
• Remote provisioning from OLT

Configurable Parameters:

• GPON Serial Number (SN)
• MAC Address
• LOID
• Password
• Hardware Version
• Software Version

Standards Compliance:

• SFP MSA
• SFF-8472
• SFP-8074
• ITU-T G.984.2
• ITU-T G.988
• RoHS Compliant

Environmental:

• Operating Temperature: -40°C to +85°C (Industrial Grade)
• Maximum Power Consumption: =3.1 W
• Digital Diagnostics: DOM / DDM Supported

Applications:

• Fiber-to-the-Home (FTTH)
• Fiber-to-the-Building (FTTB)
• Fiber-to-the-Business (FTTx)
• Enterprise Access Networks
• Wireless Backhaul
• Ethernet Switches
• Industrial Ethernet Networks
• Customer Premises Equipment (CPE)
• GPON Network Deployments

Benefits:

• Replaces a traditional external GPON ONT
• Reduces installation cost and cabling
• No external power supply required
• Simplifies network deployment and maintenance
• Compact all-in-one GPON access solution
• Reliable industrial-grade design for demanding environments

.
